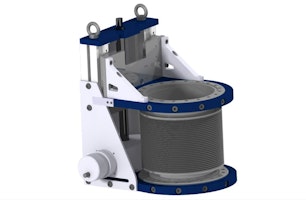

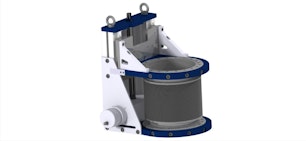

Boomerax Z Stage CF160

Price on Request

Highly precise, heavy-duty linear manipulator.

Questions? Connect with an expert

  • The Boomerax Z Stage CF160 is available in the following configurations:

    Product CodeLinear Travel ZFlange TypePrice (CHF)
    MZ160CF160CF160-0100100mmCF160Contact Ferrovac Sales
    MZ160CF160CF160-0200200mmCF160Contact Ferrovac Sales
    MZ160CF160CF160-0300300mmCF160Contact Ferrovac Sales
    MZ160CF160CF160-0500500mmCF160Contact Ferrovac Sales

    Customization Range with CF160 (Other Flanges Available Upon Request):

    Product CodeLinear Travel ZFlange TypePrice
    MZ160CF160CF160-ZZZZMin. 100mm / Max. 500mmCF160Contact Ferrovac Sales

    If you're unsure which model is best for your application or have any questions, connect with Ferrovac sales for expert advice.

    Contact

  • The Boomerax MZ160 Z-drives offer a robust design for precise linear motion. High-quality edge-welded bellows ensure leak tightness and durability, meeting all UHV requirements. Both short and long versions of the MZ160 feature a continuous free bore, thanks to the external mounting of the bellows supports.

    Boomerax Z-drives are often integrated with our Boomerax XY-Manipulators and differentially pumped rotary platforms to create complete XYZR manipulator systems.

    • Precision: A motion resolution of 2 microns enable pinpoint Z-axis accuracy and repeatable positioning.
    • Sturdy: Durable, sturdy design capable of handling heavy loads and long travel ranges, while maintaining a compact form.
    • Integration: Complete motion control solutions by combining the Z-stage with readily available Ferrovac XY-stages and rotary platforms for a complete XYZR system.

    • Mounting Flange: DN160CF with through holes (tapped M8 if desired), 304L
    • Traveling Flange: DN160CF with through holes (tapped M8 if desired), 304L
    • Bellows ID: 150mm

    • Transmission: 1:2
    • Helical/Screw gear Unit: 1:1
    • Spindle Pitch: 2mm
    • Max Driving Torque at Full Load: 2.35Nm (4:1) / 0.83Nm (16:1)

    • Bakeout Temperature: 200 °C max. (motor, switches, encoders removed)
    • Pressure Range: 1E-11 to 1000 mbar
    • Helium Leak Rate: <1E-10 mbar*l/s
    • Air-Side Lubrication
      • Spindle: Motorex Type 3000
      • Screws: CRC Dry Lube F 32602-AA
      • Linear Rails: Krytox GPL 225

    Note: MZ160 must be supported with a stand if mounted horizontally
