TECF40L90

Compact DN40CF T-piece

From

550.00 CHF

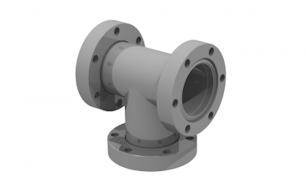

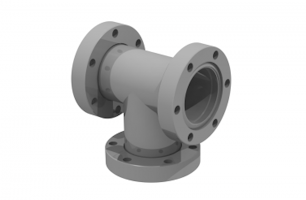

Extra short 3xDN40CF welded T-piece.

Questions? Connect with an expert

  • This compact DN40CF welded T-piece features one fixed and two rotatable DN40CF flanges.
    The extra short 90mm length allows for rapid evacuation and makes this piece very useful as a tiny docking chamber when combined with a mobile pumping station and a gat valve.

    • Length: 90 mm
    • Added Length to Main Product (Dimension Y): 90.0 mm
    • Inner Tube Diameter: 38 mm

    • Flange Configuration:
      • 1x Fixed DN40CF flange with in-line oriented clear holes
      • 2x Rotatable DN40CF flanges with clear holes

    • Material: Stainless Steel (1.4301)
    • Leak Rate: 1 x 10^-9 mbar * l/s (Helium)
