Compact Port Aligner (DN160CF)
Compact and Special Port Aligners
Port Alignment
Products
Home

PA160E

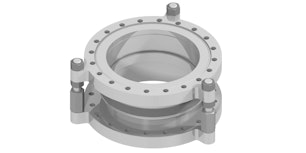

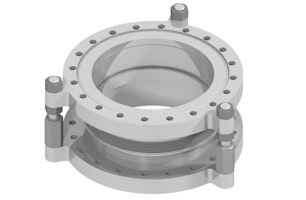

Compact Port Aligner (DN160CF)

From

6’900.00 CHF

Precise angular & linear alignment tool for UHV-systems with extra compact bellows length.

Questions? Connect with an expertBuy at UHV store

  • The PA160E Compact Port Aligner is a simple yet precise device designed for both angular and linear alignment in UHV systems. Featuring DN160CF flanges with through holes, it enables accurate insertion length and angular deflection adjustments using three threaded bolts with adjustment nuts.

    Its compact edge-welded bellows construction ensures durability, flexibility, and long service life, making it an ideal solution for high-precision vacuum applications.

    • Flanges: DN160CF (8" OD), through holes
    • Length: 95mm
    • Linear Adjustement: ±10mm
    • Angular Deflection: ±3°
    • Clear Bore: 127mm
    • Material: Stainless steel 1.4404 (316L)
    • Maximum Bakeout Temperature: 250°C
