TSWMA

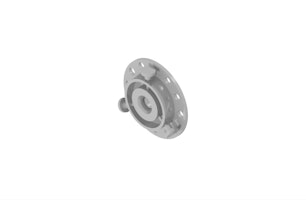

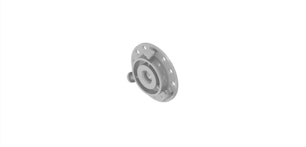

Adjustable Deflection Aligner for Wobblesticks DN40CF
From
650.00 CHF
Precisely aligns DN40CF wobblesticks and locks the deflection to ±8°.
The Deflection Aligner for Wobblesticks is a high-precision tool for wobblestick manipulators. Three knurled screws allow fine adjustment of the axis by ±8 degrees, and it mounts directly to the DN40CF flange bolts for secure installation. For enhanced tube protection, it can be paired with the TSWMF protection rail.
Note: Retrofitting some models may reduce the linear travel range.
Contact
Connect with Ferrovac sales for expert advice.- Angular Deflection: ±8 degrees
- Mounting Method: Directly mounted using the bolts of the DN40CF flange
Downloads
Wobblestick Compatibility
Single Shaft Wobblestick
WM40-XXXX-YYYY
From3’350.00 CHF
Single Shaft Wobblestick - Wide Angle
WMWA40-XXXX-YYYY
From3’900.00 CHF
Single Shaft Wobblestick - High Torque
WM40HT-XXX-YYYY
From3’980.00 CHF
Dual Shaft Wobblestick
WMG40-XXXX-YYYY
From4’940.00 CHF
Dual Shaft Wobblestick - Wide Angle
WMGWA40-XXXX-YYYY
From6’400.00 CHF
Dual Shaft Wobblestick - Fine Control
WMG40(FC)-XXXX-YYYY
From6’100.00 CHF
