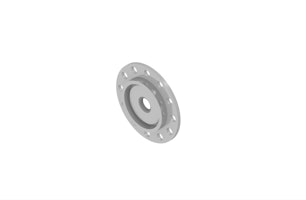

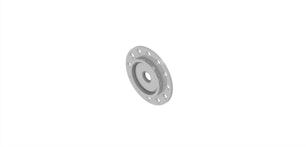

±3° Deflection Limiter for Wobblesticks DN40CF

From

550.00 CHF

Wobblestick add-on to limit the possible deflection range.

For customized angular limitations tailored to your specific application, please connect with Ferrovac sales for expert advice.
Contact
- Precise Angular Control: Limits deflection wobblesticks to ±3 degrees.
- Collision Prevention: Prevents collisions with sensitive equipment in vacuum chambers.
- Enhanced Safety: Ensures safety and functionality in confined environments.
The Deflection Limiter is designed to precisely control the angular deflection of WM40 and WMG40 wobblesticks, capping movement at ±3 degrees. This restriction can be useful to prevent collisions between the wobblestick and other sensitive equipment within vacuum chambers.
While the TSWMDL(3) effectively manages angular movement, we recommend pairing it with the TSWM Parking-/Protection Rail for comprehensive bump protection and secure parking of the wobblestick when it is not in use.
- Angular Deflection: ±3°
- Mounting Method: Utilizes the bolts of the CF40 flange for secure installation
