HSASOM40(EB)-YYYY-ZZZZ

E-Beam Heating Station for Flag Style Plates

From

15’860.00 CHF

Fully configured, ready-to-use electron bombardement heating stage.

Questions? Connect with an expertBuy at UHV store

  • The standard length heating stage is available for direct purchase on the UHVstore.

    This heating stage can be customized in two ways:
    The distance from mounting flange surface to the center of the sample plate (Parameter Y), and the orientation of the sample plate receiver (Parameter Z). See technical drawing (2D) for orientation details.

    Product CodeRetracted Length YReceiver Orientation Z
    HSASOM40(EBMD)-YYYY-0001min. 156mm / max. 400mm; standard 160mmOrientation 01 (flag perpendicular to axis)
    HSASOM40(EBMD)-YYYY-0002min. 156mm / max. 400mm; standard 160mmOrientation 02 (flag perpendicular to axis, straight)
    HSASOM40(EBMD)-YYYY-0003min. 156mm / max. 400mm; standard 160mmOrientation 03 (flag in-line with axis)

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    • Ultra-High Temperature Capability: Achieves temperatures up to 2000°C.*
    • E-Beam Heating Technology: Provides rapid and focused heating.

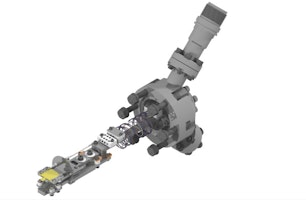

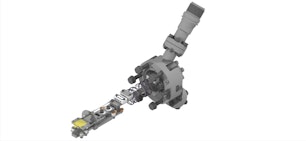

    The HSASOM40(EB) Heating Station is a fully configured UHV solution designed for fast heating of flag style sample plates to ultra-high temperatures.

    This assembly features an electron beam heating stage, pre-mounted on a DN40CF (2.75") flange with all necessary wiring and electrical feedthroughs to form a ready-to-use solution for your UHV system.

    It enables rapid and precise sample heating up to 2000°C, making it ideal for advanced material processing and surface science applications.

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.

    • Mounting Flange: DN40CF (2.75")
    • Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.

    • Mounted EB Sample Plate Receiver: Electron Bombardement Heater Unit
      • Receiver Orientation Options: See Product Configuration above.
      • Temperature Range: RT ~ 2000°C*
    • Thermocouple: Not included in the standard version.
      • Thermocouple placement would require physical and electrical contact with the sample plate.
      • When using sample bias voltages, thermocouple connection is only recommended with suitable measuring devices that can compensate for the bias voltage.

    • Compatible Sample Plates: Flag Style Sample Plates, Not included
    • Electrical Feedthroughs:
      • 4-Pin MS12 Type, CF16:
        • Air-Side Connector: Included (No Cable)
        • Pin Material: Molybdenum
        • Maximum Voltage: 12kV
      • 1-Pin SHV Type, CF16:
        • Air-Side Connector: Included (No Cable)
        • Maximum Voltage: 5kV

    • Power Supply: Not included
    • Controller: Not included
    • Packaging: Included

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.
