Compact Port Aligner (DN40CF)

From

1’850.00 CHF

Precise angular & linear alignment tool for UHV-systems, with extra compact length

Questions? Connect with an expertBuy at UHV store

    • Compact Precision: The shorter insertion length reduces the loss of travel range of connected manipulators.
    • High temperature Option: The compact design of bellows and screws allows for a higher bake-out temperature of 250°C.
    • Ideal for Sample Transporters: Perfect for aligning sample transporters like the MD40 or RM40 models.

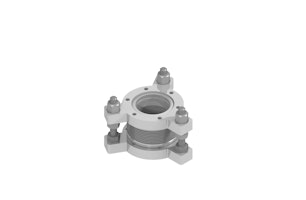

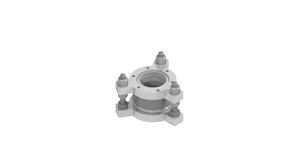

    The PA40EC port aligner is the most compact option for port alignment between DN40CF flanges.

    Both flanges are tapped with M6 holes to achieve the shortest possible insertion length.
    An edge-welded bellows unit between the flanges is supported by thre hexnut screws that enable angular and linear adjustements.

    • Flanges: DN40CF (2.75" OD), tapped M6
    • Insertion Length: 53 mm
    • Linear Adjustement: +4 / -11 mm
    • Angular Adjustement: +/- 5 deg
    • Lateral Axis Displacement: None
    • Free Bore: 38mm
    • Bakeout Temperature: 250 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
    • Fully UHV Compatible
