Flag Style Sample Plate Configuration with 3x Leaf Springs and 5x M1.4 Threads and

Price on Request

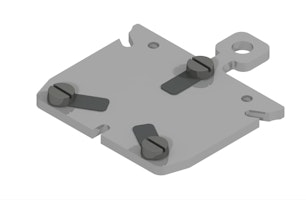

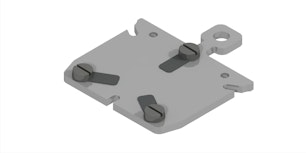

A fully configured sample holder assembly, featuring three sheet metal spring fixtures.

Questions? Connect with an expert

  • This sample holder configuration is assembled from the following single components, each of which are also available for purchase on the UHV Store.

    Flag Style Sample Plate, 5xM1.4
    Product CodeMaterialPrice
    SHOMT(CB)Copper berylliumVisit UHV Store
    SHOMT(CU)CU-OFE (CW009A)Visit UHV Store
    SHOMT(MO)MolybdenumVisit UHV Store
    SHOMT(PT)PlatinumVisit UHV Store
    SHOMT(ST)Stainless steel 1.4301 (AISI 304L)Visit UHV Store
    SHOMT(TA)TantalumVisit UHV Store
    Leaf springs

    (12 pieces included)

    Product CodeLengthMaterialPrice
    SHFS4(CB)PK124.4mmCopper berylliumVisit UHV Store
    SHFS6(CB)PK126mmCopper berylliumVisit UHV Store
    SHFS9(CB)PK128.6mmCopper berylliumVisit UHV Store
    SHFS4(ST)PK124.4mmStainless steel 1.4310 (AISI 301)Visit UHV Store
    SHFS6(ST)PK126mmStainless steel 1.4310 (AISI 301)Visit UHV Store
    SHFS9(ST)PK128.6mmStainless steel 1.4310 (AISI 301)Visit UHV Store
    SHFS4(TA)PK124.4mmTantalumVisit UHV Store
    SHFS6(TA)PK126mmTantalumVisit UHV Store
    SHFS9(TA)PK128.6mmTantalumVisit UHV Store
    SHFS4(MO)PK124.4mmMolybdenumVisit UHV Store
    SHFS6(MO)PK126mmMolybdenumVisit UHV Store
    SHFS9(MO)PK128.6mmMolybdenumVisit UHV Store
    Screws M1.4 x 1mm CHECK PRODUCT CODE FOR SCREWS

    (12 pieces included)

    Product CodeLinear Travel XPrice
    FA18401401PK12TantalumVisit UHV Store
    FA18301401PK12MolybdenumVisit UHV Store
    FA18201401PK12TitaniumVisit UHV Store
    FA18101401PK12Stainless steel 1.4310 (AISI 301)Visit UHV Store

  • This Flag Style Sample Holder assembly contains leaf springs, offering versatile options for securing samples onto the sample plate.

    The sample plate features five M1.4 threaded holes and supports leaf springs available in three lengths:

    • 4.4 mm
    • 6 mm
    • 8.6 mm

    The leaf springs are available in various materials to accommodate different applications (see the above leaf spring configuration table), and are secured in place using screws.

    Important Recommendation:
    To prevent cold welding, we strongly advise against selecting the sample plate and screws made from the same material, as this may cause the parts to fuse together, making disassembly impossible.

    • Plate Dimensions: 18mm x 15mm (+6mm)
    • Plate Thickness: 1mm
    • Available in a variety of materials (see "Product Configurations" above).
