BP40

Bellows Protector for Wobblesticks

From

330.00 CHF

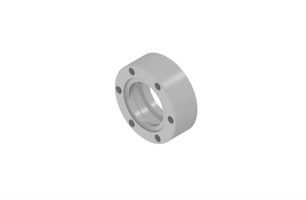

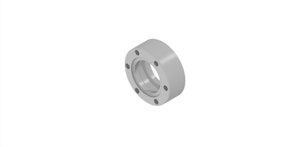

Double-sided flange DN40CF designed for wobblesticks.

Questions? Connect with an expertBuy at UHV store

  • The BP40 Flange Adapter is designed to securely install wobblesticks to flanges with tube inner diameters of less than 38mm. It ensures proper deflection and safeguards the bellows from potential damage due to collisions or restricted movement. This adapter is particularly essential when mounting WM40 and WMG40 wobblesticks on DN40CF flanges with smaller or standard-sized tubes, where the risk of bellows interference is high.

    To achieve optimal alignment and functionality of the wobblestick, it is recommended to pair the BP40 with the TSWMA alignment tool.

    Viewing enlarged image:

    • Bellows Protection: Prevents bellows collision and damage for WM40 and WMG40 wobblesticks.
    • Complete Kit: Includes copper gaskets, screws (M6x60), nuts, and washers.

    • Material: 1.4301 stainless steel
    • Mounting Flange: DN40CF
    • Dimensional Change: Decreases the retracted length of the main product by -26.0 mm
    • Bakeout Temperature: Maximum 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar
    • Included Components:
      • Two annealed copper gaskets
      • Hexagon socket screws (M6x60)
      • Nuts and washers

Wobblestick Compatibility
