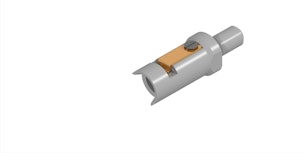

Grabber for Cameca Atom Probe Puck

• Product Configurations

  Product Code	Model Type	Mounting Connection	Compatibility	Price
  GRABSHAP	Standard	ø 8mm Shaft	Heavy-Duty Sample Transporter	CHF 1'685
  GRABSHAP7	Standard	ø 7mm Shaft	Sample Transporters, Single-Shaft Wobblesticks	CHF 1'685
  GRASHAPS	Slim	M4 Thread	Heavy-Duty Sample Transporter, Sample Transporters, Single-Shaft Wobblesticks	CHF 1'455

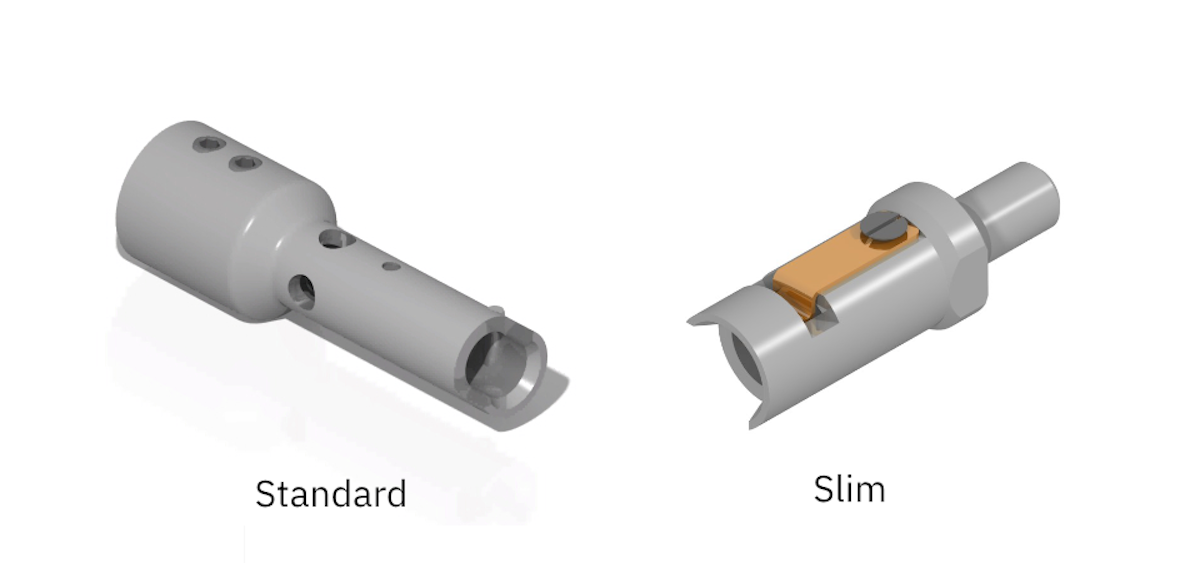

  Difference between Standard and Slim Model Type:

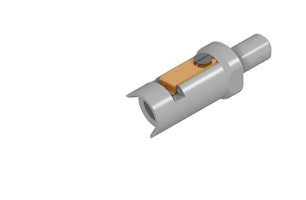

  Viewing enlarged image:

• Description

  This specialized grabber tool is designed for the secure and efficient transfer of atom probe pucks within controlled environments. Engineered for compatibility with:

  • Docking stations: For streamlined puck exchange.
  • Fast loader stations: Optimized for rapid sample loading and analysis.
  • Room temperature UHV suitcases: Maintain ultra-high vacuum conditions during transport and storage.

• Specifications

  • Bakeout Temperature: 200 °C max.
  • Compatibility: Single Shaft Wobblesticks (WM40) and UHV Suitcases
  • Materials: Stainless Steel 1.4301, 1.4310, 2.1247 (CuBe), PEEK

  Dimensional Change: Increases retracted length of the main product by 28.5 mm
