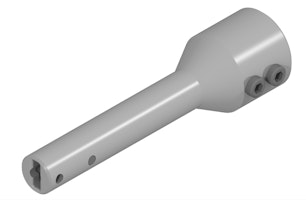

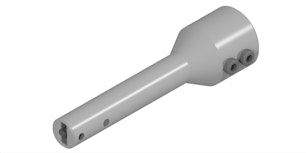

GRABSHOMOD6L45
Long Grabber for Flag-Style Plates
From
1’350.00 CHF
Smooth flag style sample holder handling for single-shaft manipulators.
Product Code Mounting Diameter Compatibility Price GRABSHOMOD6L45 ø 8mm Heavy-Duty Sample Transporter CHF 1'350 GRABSHOMOD6L45(ID7) ø 7mm Sample Transporters, Single-Shaft Wobblesticks CHF 1'350 This extended-length GRABSHOM is precision-engineered for secure and effortless handling of sample plates in confined spaces
Simply rotate the wobblestick handle 90 degrees in either direction to securely lock the sample plate into place. A gentle spring-loaded piston holds the plate firmly yet delicately, minimizing the risk of damage.
Continuous rotation for safe handling.
- Dimensions: OD 6mm, 45mm length
- Bakeout Temperature: 200 °C max.
- Materials: Stainless Steel, Titanium
- GRABSHOMOD6L45(ID7) additionally contains an oxygen-free part
Dimensional Change: Increases retracted length of the main product by 35.0 mm
