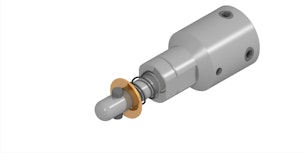

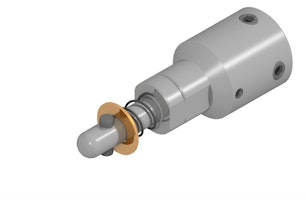

GRABSHDO
Grabber for Dove-Tail Shuttles
From
1’685.00 CHF
Smooth dovetail sample holder handling for single-shaft manipulators.
Product Code Mounting Diameter Compatibility Price GRABSHDO ø 8mm Heavy-Duty Sample Transporter CHF 1'685 GRABSHDO7 ø 7mm Sample Transporters, Single-Shaft Wobblesticks CHF 1'685 Secure Bayonet Lock: The integrated bayonet lock ensures a secure and reliable connection with your dovetail sample holders. A simple 90-degree twist in either direction locks your sample holder.
Gentle Spring-Loaded Piston: A spring-loaded piston provides a gentle yet firm hold on your sample holder, minimizing the risk of damage.
Continuous rotation for safe handling.
- Bakeout Temperature: 200 °C max.
- Materials: Stainless Steel 1.4301, 1.4310, 2.1247 (CuBe)
Dimensional Change: Increases retracted length of the main product by 26.0 mm
Sample Transporter Compatibility
Sample Transporter (DN16CF)
MD16-XXXX-YYYY
From1’800.00 CHF
Sample Transporter (DN40CF)
MD40-XXXX-YYYY
From2’000.00 CHF
Sample Transporter (DN40CF), Zero Retracted Length
MD40(Y0)-XXXX-0001
From2’500.00 CHF
High-Torque Sample Transporter (DN40CF)
MD40HT-XXXX-YYYY
From3’900.00 CHF
Heavy-Duty Sample Transporter (DN40CF)
RM40-XXXX-YYYY
From3’500.00 CHF
