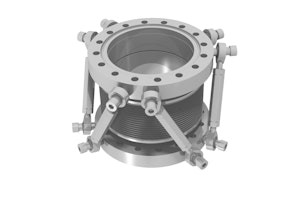

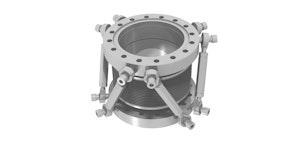

Hexagonal Port Aligner (DN100CF)

From

3’800.00 CHF

Precise angular, lateral & linear alignment tool for UHV-systems with six degrees of freedom.

Questions? Connect with an expertBuy at UHV store

    • Hexapod Precision: Six adjustment screws enable precise angular, linear, and lateral positioning.
    • Enhanced Stability: Hexagonally mounted adjustement screws support an edge-welded bellows unit to form a compact and very sturdy design.
    • Perfect for Instrument Alignment: Perfect for aligning an instrument axis, or a Boomerax Z-Stage with a target position in a UHV system.

    The PA100HEX port aligner is designed for precise linear, angular and lateral displacement in a wide range of UHV system applications.

    A hexapod geometry with six pivot-mounted alignment screws offers enhanced stability and full degrees of freedom for precise positioning.

    • Flanges: DN100CF (6" OD), through holes
    • Length: 120 mm
    • Linear Adjustement: +/- 5 mm
    • Angular Adjustement: +/- 5 deg
    • Lateral Axis Displacement: +/- 5 mm
    • Free Bore: 102mm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
