PA160HEX(T2)

Hexagonal Port Aligner (DN160CF)

From

7’500.00 CHF

Precise angular, lateral & linear alignment tool for UHV-systems with six degrees of freedom.

Questions? Connect with an expertBuy at UHV store

    • Hexapod Precision: Six adjustment screws enable precise angular, linear, and lateral positioning.
    • Enhanced Stability: Hexagonally mounted adjustement screws support an edge-welded bellows unit to form a compact and very sturdy design.
    • Ideal System Connection: Perfect as an adjustable chamber connection or for instrument axis alignment.

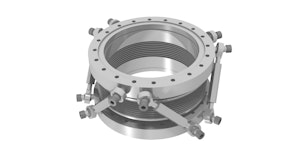

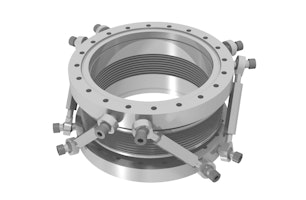

    The PA160HEX(T2) port aligner is designed for precise linear, angular and lateral displacement in a wide range of UHV system applications.

    A hexapod geometry with six pivot-mounted alignment screws offers enhanced stability and full degrees of freedom for precise positioning.

    • Flanges: DN160CF (8" OD), tapped M8
    • Length: 105 mm
    • Linear Adjustement: +/- 5 mm
    • Angular Adjustement: +/- 5 deg
    • Lateral Axis Displacement: +/- 3 mm
    • Free Bore: 150mm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
