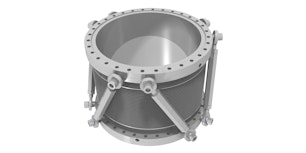

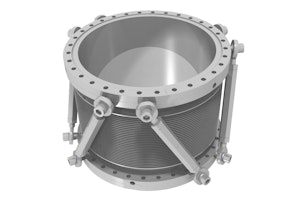

Hexagonal Port Aligner (DN250CF)

From

15’600.00 CHF

Precise angular, lateral & linear alignment tool for UHV-systems with six degrees of freedom.

Questions? Connect with an expert

    • Hexapod Precision: Six adjustment screws enable precise angular, linear, and lateral positioning.
    • Enhanced Stability: Hexagonally mounted adjustement screws support an edge-welded bellows unit to form a compact and very sturdy design.
    • Precision at Scale: Perfect as an adjustable chamber connection or for instrument axis alignment at a larger scale, without any loss in precision.

    The PA250HEX port aligner is designed for precise linear, angular and lateral displacement on the largest scale.

    A hexapod geometry with six pivot-mounted alignment screws offers enhanced stability and full degrees of freedom for precise positioning.

    • Flanges: DN250CF (12" OD), through holes
    • Insertion Length: 220 mm
    • Linear Adjustement: +/- 10 mm
    • Angular Adjustement: +/- 5 deg
    • Lateral Axis Displacement: +/- 5 mm
    • Free Bore: 250mm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
