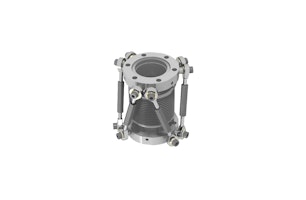

Hexagonal Port Aligner (DN40CF)

From

1’800.00 CHF

Precise angular, lateral & linear alignment tool for UHV-systems with six degrees of freedom.

Questions? Connect with an expertBuy at UHV store

    • Hexapod Precision: Six adjustment screws enable precise angular, linear, and lateral positioning.
    • Enhanced Stability: Hexagonally mounted adjustement screws support an edge-welded bellows unit to form a compact and very sturdy design.
    • Component Alignment: Perfect for aligning sample transporters, like the MD40 or RM40 models, with two points of sample interchange.

    The PA40HEX port aligner is designed for precise linear, angular and lateral displacement in a wide range of UHV system applications.

    A hexapod geometry with six pivot-mounted alignment screws offers enhanced stability and full degrees of freedom for precise positioning.

    • Flanges: DN40CF (2.75" O.D.), through holes
    • Length: 90 mm
    • Linear Adjustement: +/- 5 mm
    • Angular Adjustement: +/- 5 deg
    • Lateral Axis Displacement: +/- 5 mm
    • Free Bore: 38mm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
