Sheet Metal Holder for Rectangular Single Crystals

Price on Request

Sheet metal bracket to mount rectangular single crystals to sample holders.

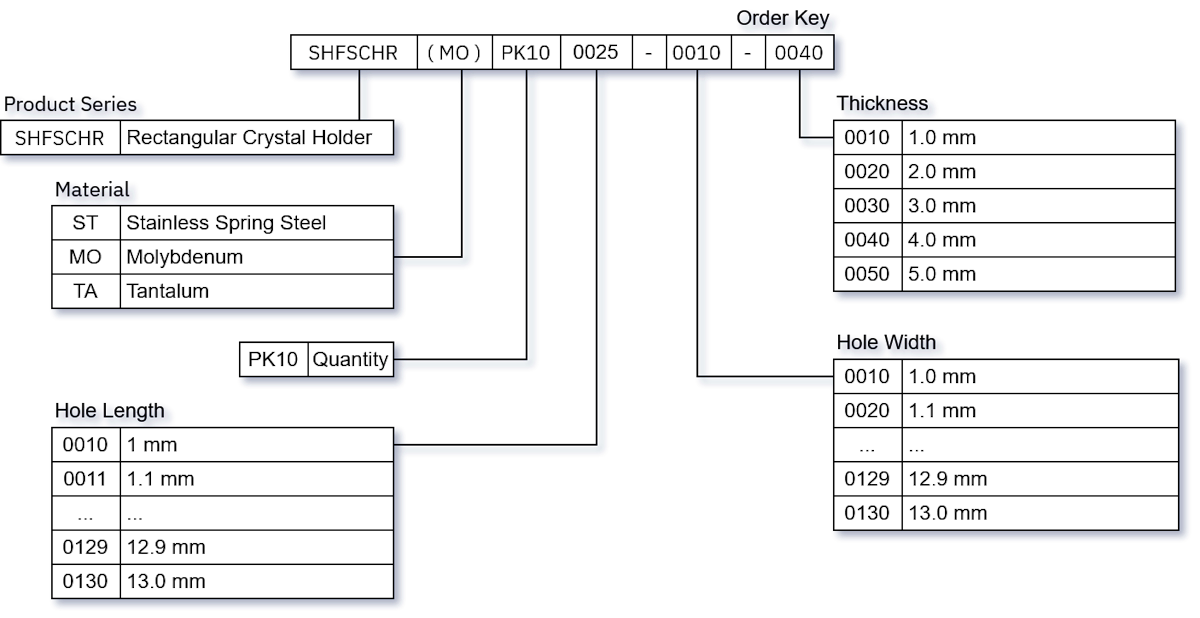

This product configuration chart applies only to the sheet metal bracket of the Rectangular Crystal Holder. Please refer to the Flag-Style Sample Base Plate (SHOMT) and Screws product pages to complete your assembly.

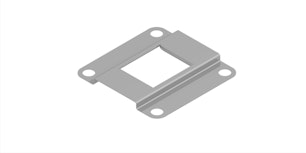

Viewing enlarged image:

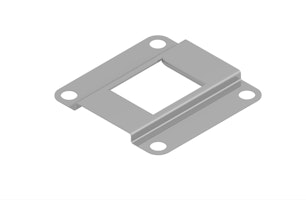

This sample holder simplifies the mounting process for rectangular single crystals, such as Type K102, with its four bent shoulders ensuring secure clamping at the center of the sample plate.
Designed for precision, this sample holder accommodates rectangular single crystals in a range of dimensions and is available in various materials. For available configurations, refer to the product configuration chart above.
To complete your order, select the required components to match your specifications. This page refers only to the holder itself.
- Base Sample Plate: Flag-Style Sample Plate (5x M1.4)
- Rectangular Crystal Holder (this product)
- Fasteners: Screw Set
Important Recommendation:
To prevent cold welding, we strongly advise to select screws that are of a different material than your chosen sample plate. Choosing the same material for both may cause the parts to fuse together, making disassembly impossible.
If you need assistance with this product, connect with Ferrovac Sales for expert advice.
Connect with an Expert
Specifications vary by order. Please refer to the product configuration chart above.

Flag Style Sample Plate, 5xM1.4
