HSASOM40(DC)-YYYY-ZZZZ

DC Heating Station for SHOMDC Sample Heating Plates

From

9’500.00 CHF

Fully configured, ready-to-use direct current heating stage.

Questions? Connect with an expertBuy at UHV store

  • The standard length heating stage is available for direct purchase on the UHVstore.

    This heating stage can be customized in two ways:
    The distance from mounting flange surface to the center of the sample plate (Parameter Y), and the orientation of the sample plate receiver (Parameter Z).

    Product CodeRetracted Length YReceiver Orientation Z
    HSASOM40(DC)-YYYY-0001min. 107mm / max. 400mm; standard 107mmOrientation 01 (flag perpendicular to axis)
    HSASOM40(DC)-YYYY-0002min. 107mm / max. 400mm; standard 107Orientation 02 (flag perpendicular to axis, straight)

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    • Direct Current (DC) Heating: Enables efficient and precise sample heating up to 1300°C*.
    • Integrated Thermocouple: Includes a K-type thermocouple for accurate temperature monitoring.

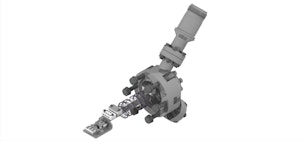

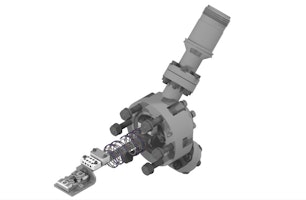

    The HSASOM40(DC) Heating Station is a fully configured UHV solution designed for direct current (DC) heating of SHOMDC sample holders.

    This assembly features a specialized sample receiver with two high-current electrical contacts, pre-mounted on a DN40CF (2.75") flange with all necessary wiring and electrical feedthroughs.

    It provides a ready-to-use solution for sample heating and annealing in UHV environments.

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.

    • Mounting Flange: DN40CF (2.75")
    • Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.

    • Mounted DC Sample Plate Receiver: Direct Current Heating Drawer Style Receiver (RECOMDC)
      • Receiver Orientation Options: See Product Configuration above.

    • Air-Side Cable:
      • Length: 6 meters
      • Side A: 4-pin industry-standard MS air-side connector, two K-type thermocouple pairs
      • Side B: K-type (chromel/alumel) miniature thermocouple connector, 3x safety 4mm banana plugs (red, black, yellow)

    • Power Supply: Not included
      • Recommended: 150W, Voltage Range: 0-50V, Current Range: 0-5A
    • Controller: Not included
    • Packaging: Included

Compatible Sample Plates
