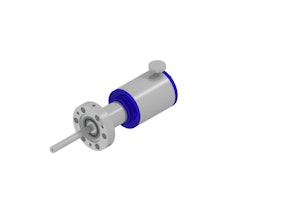

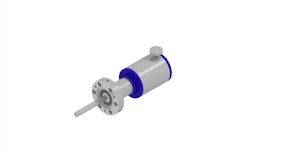

Mini Rotary Feedthrough (DN16CF)

From

950.00 CHF

Compact rotary motion feedthrough.

Questions? Connect with an expertBuy at UHV store

  • Optional Upgrades:

    • Motorization adapters
    • Shaft extensions
    • Stepper motor drive
    • Hybrid ball bearings on vacuum side

  • The RF16 is a multipurpose, magnetically driven miniature rotary feedthrough that enables precision rotation for UHV system applications.

    Motorization upgrades are available.

    • Flange Size: DN16CF (1.33" O.D.)
    • Shaft Insertion Length: 37mm
    • Torque: 0.5 Nm
    • Bakeout Temperature: Max. 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar
