RF40

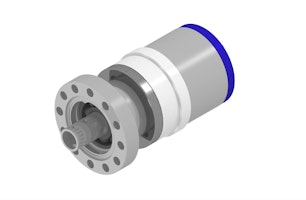

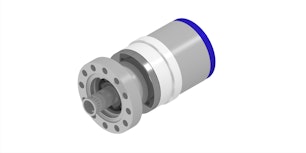

Rotary Feedthrough (DN40CF)

From

3’270.00 CHF

High-torque rotary motion feedthrough with hollow-shaft technology.

Questions? Connect with an expertBuy at UHV store

  • Optional Upgrades:

    • Rotation Limit
    • Motorization adapters
    • Stepper motor drive

    The rotary feedthrough hollow-shaft can be used in conjunction with a DN16CF electrical feedthrough or a DN16CF manipulator such as the MD16 for additional linear/rotary motion.

  • The RF40 is designed to be used in conjunction with the Ferrovac Boomerax series of Manipulators.

    It's high-torque capability along with an additional DN16CF feedthrough flange make it ideal for use in turning inserts and allowing electrical feedthrough through to a sample environment.

    This rotary feedthrough also includes a 360° precision scale with adjustable zero.

    • Mounting Flange: DN40CF (2.75" O.D.)
    • Feedthrough Flange: DN16CF (1.33" O.D.)
    • Shaft Insertion Length: 20mm

    • Torque: 10 Nm
    • Max Axial load: 500N
    • Max Radial load: 300N

    • Bakeout Temperature: Max. 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar
    • He leak rate: <1*10E-10mbar*l/s
