VSN40M(CF16)-XXXX

Mini UHV Suitcase Package

From

29’750.00 CHF

  • Ultra-Compact UHV Transfer: Smallest, lightweight design for limited spaces.
  • Integrated NEG/Ion Pump: Ensures reliable UHV conditions.
  • Versatile Sample Handling: Storage stack, revolving carrier, or grabber options.
  • Portable Instrument Transfer: Facilitates easy sample movement between setups.

Questions? Connect with an expertBuy at UHV store

  • The Mini UHV Suitcase is available with the following insertion depths, measured from the KF adapter flange. The effective insertion depth may vary depending on the chosen end-effector.

    Product CodeExtended Length of Transporter RodSample Stack Storage Capacity (Option 1)Grabber Options (Option 2)Ravolving Sample Carrier (Option 3)Price
    VSN40M(CF16)-020060 mmmin. 2 slot / max. 10 slots Flag-Style Sample Grabber (GRABSHOM), Atom Probe Puck Grabber (GRABSHAP), Dove-Tail Grabber (GRABSHDO)2 slotsContact Ferrovc Sales
    VSN40M(CF16)-0300 (Standard)160 mmmin. 2 slot / max. 10 slotsFlag-Style Sample Grabber (GRABSHOM), Atom Probe Puck Grabber (GRABSHAP), Dove-Tail Grabber (GRABSHDO)2 slotsCHF 29'750.00 (Visit UHV Store)
    VSN40M(CF16)-0400260 mmmin. 2 slot / max. 10 slotsFlag-Style Sample Grabber (GRABSHOM), Atom Probe Puck Grabber (GRABSHAP), Dove-Tail Grabber (GRABSHDO)2 slotsContact Ferrovc Sales
    VSN40M(CF16)-0500360 mmmin. 2 slot / max. 10 slotsFlag-Style Sample Grabber (GRABSHOM), Atom Probe Puck Grabber (GRABSHAP), Dove-Tail Grabber (GRABSHDO)2 slotsContact Ferrovc Sales

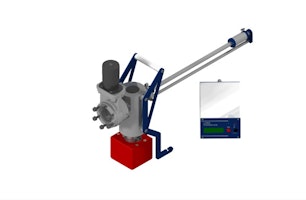

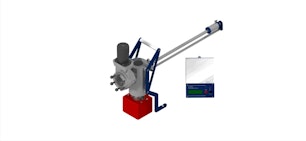

  • The VSN40M Mini UHV Suitcase is the smallest and lightest UHV suitcase available, perfect for transferring multiple samples between instruments where space is limited. This portable and compact UHV system utilizes combined Non-Evaporable Getter (NEG) and Ion-pump technology.

    It features a storage stack for multiple sample plates, with options for a revolving sample carrier for easy access or a grabber for single sample transport.

    Included Accessories:

    • Bakeout tent for UHV suitcase.
    • Bakeout heater for UHV suitcase.
    • Flight case.

    If you need assistance with this product, a Ferrovac expert is ready to help you find the optimal solution.

    Connect with an expert

  • Vacuum System:

    • Pump: NexTorr D100-5 combined NEG-Ion pump
    • Power Supply: LSA3.1 rechargeable battery-driven power supply

    Sample Handling:

    • Storage Stack: Customizable storage configuration
    • Alternatives: Revolving sample carrier or grabber (optional)
    • Sample Compatibility: Flag-style sample plates, other systems on request
    • Linear/Rotary Feedthrough: MD16-XXXX-0030 (200, 300, 400, or 500mm travel)

    Control and Monitoring:

    • LSA3 Controller: Pressure and temperature readout
    • LSN1 Controller: NEG activation
    • Viewport: Top-mounted for sample observation

    Physical Specifications:

    • Linear Travel X: 200mm to 500mm (standard 300mm)
    • Extended Length (Gate Valve Flange): Travel length (XXXX) - 115mm
    • Extended Length (KF Adapter Flange): Travel length (XXXX) - 140mm
    • Weight: Approximately 5.5kg (+1kg per controller)

    Additional Features:

    • Delivered under UHV, ready for immediate use
    • Full set of controller cables
    • Flight case for transport
    • Extra short CF40 to KF40 adapter with KF40 buffer volume cap
    • Bakeout temperature: 150°C max.
