DRVMDMOTL16-XXXX
Motorized Linear Drive for Sample Transporters (MD16)
Price on Request
Motorization Upgrade for the Linear Travel of Sample Transporters.
Product Code Length X Customization Range Motorized Motion Price DRVMDMOTL16-XXXX 226mm + [MD16 Linear Travel] min. 236mm/ max. 526mm MD16 Linear Travel Contact Ferrovac Sales Connect with Ferrovac Sales for expert advice.

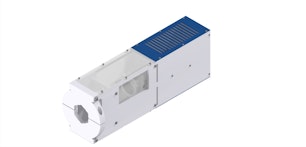

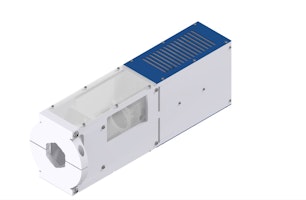

ContactThe DRVMDMOTL16 is a high-precision stepper motor-driven, one-axis linear actuator, specifically designed for MD16 Sample Transporters. It features a motorized spindle drive, which controls linear motion via an outer magnet, achieving a resolution of 0.01mm.
Powered by a Nanotec 2-phase stepper motor (ST2018L0804), this actuator ensures precise, repeatable motion control while maintaining stable alignment and consistent positioning in ultra-high vacuum (UHV) environments.
The DRVMDMOTL16 can be configured for continuous rotation or as a linear-only drive, making it adaptable for various applications.
For bakeout procedures, the stepper motor must be removed.
- High-Precision Linear Motion Control: Achieves 0.01mm resolution for precise positioning
- Seamless MD16 Integration: Designed for use with MD16 Sample Transporters
- Stable & Rigid Design: Ensures consistent alignment and repeatable positioning
General
- Mounting Flange: DN16CF (2.75" O.D.)
- Outer Length (X): 236mm – 526mm
- Linear Travel: Equal to MD16 Linear Travel
- Max Travel Speed: 25mm/s
- Theoretical Resolution: 0.01mm
- Linear Force: 30N
- Torque: 0.5Nm
- Manipulator Bakeout Temperature: 200°C max. (Stepper motor must be removed)
- Pressure Range: 1E-11 mbar to 1000 mbar
Stepper Motor Specifications
- Voltage/Phase: 3.22 VDC
- Current/Phase: 1.4 A
- Resistance/Phase: 2.3 Ω ±10%
- Holding Torque: 0.117 Nm
- Step Angle: 1.8° ±5%
- Controller: Not included
