Motorized Linear & Rotary Drive for Sample Transporters (MD16)

Price on Request

Motorization Upgrade for the Rotational and Linear Travel of Sample Transporters.

Questions? Connect with an expert

  • Product CodeLength XCustomization RangeMotorized MotionPrice
    DRVMDMOTLR16-XXXX226mm + [MD16 Linear Travel]min. 236mm/ max. 526mmMD16 Rotation & Linear TravelContact Ferrovac Sales

    Connect with Ferrovac Sales for expert advice.

    Contact

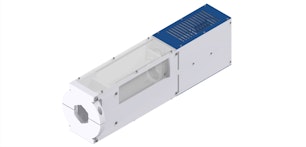

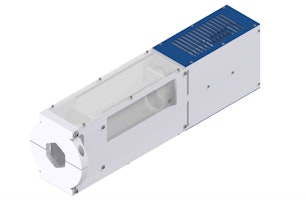

  • The DRVMDMOTLR16 is a high-precision stepper motor-driven linear and rotary actuator, designed for seamless integration with MD16 Sample Transporters. It features a motorized spindle drive that controls linear motion via an outer magnet, achieving a resolution of 0.01mm.

    The rotary axis is activated via gear wheels, which transfer motion from a second stepper motor with a planetary gearbox, ensuring precise and repeatable rotation. The sturdy construction maintains stable alignment and consistent positioning, making it ideal for applications in ultra-high vacuum (UHV) environments.

    A Nanotec 2-phase stepper motor (ST2018L0804) drives the linear axis, while a second stepper motor with gearbox controls the rotary axis.

    This drive can be retrofitted to existing MD16 Sample Transporters.
    For bakeout procedures, the stepper motor must be removed.

    • Dual-Axis Motion Control: Supports both linear and rotary movement
    • High-Precision Linear Travel: Achieves 0.01mm resolution
    • Stable & Rigid Design: Ensures consistent alignment and repeatable positioning

  • General

    • Mounting Flange: DN16CF (1.33" O.D.)
    • Outer Length (X): 236mm – 626mm
    • Linear Travel: Equal to MD16 Linear Travel

    • Max Travel Speed: 25mm/s
    • Theoretical Linear Resolution: 0.01mm (with 2mm pitched spindle)
    • Linear Force: 30N
    • Torque: 0.5Nm

    • Manipulator Bakeout Temperature: 200°C max. (Stepper motor must be removed)
    • Pressure Range: 1E-11 mbar to 1000 mbar


    Stepper Motor (Linear Drive)

    • Voltage/Phase: 3.22 VDC
    • Current/Phase: 1.4 A
    • Resistance/Phase: 2.3 Ω ±10%
    • Holding Torque: 0.117 Nm
    • Step Angle: 1.8° ±5%
    • Controller: Not included


    Stepper Motor (Rotary Drive)

    • Voltage/Phase: 4.8 VDC
    • Current/Phase: 0.8 A
    • Resistance/Phase: 6.0 Ω ±15%
    • Holding Torque: 0.036 Nm (without gear unit)
    • Step Angle: 1.8° ±5%
    • Planetary Gear (GPLL22-25):
      • Reduction Ratio: 25.2
      • Efficiency: 70%
      • Max. Torsional Backlash: 150 arcminutes
    • Controller: Not included

Sample Transporter Compatibility
