HSOMPBN50

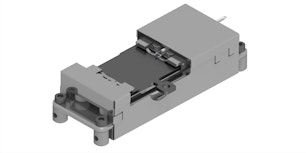

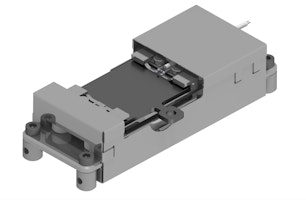

PBN Heating Unit for Flag Style Plates
7’450.00 CHF
Compact boralectric heater unit for flag style sample plates.
- High Temperature Capability: Reaches a maximum temperature of 1000°C.
- Efficient Heating: 120W maximum power for rapid temperature ramp-up.
- Versatile Integration: Compatible with various UHV systems and XYZ manipulators.
The HSOMPBN50 Heater Assembly is a high-performance heating solution designed for flag-style sample plates in ultra-high vacuum (UHV) environments. This assembly is ideal for applications requiring uniform and highly controlled heating up to 1000°C*.
It can be integrated into fully configured heating stages with flange assemblies and electrical feedthroughs, mounted as end effectors to magnetically coupled manipulators, or be easily adapted to most commercially available XYZ manipulators, including Ferrovac Boomerax manipulators.
The HSOMPBN50 utilizes a Boralectric heater, combining pyrolytic boron nitride and pyrolytic graphite for efficient and uniform heating.
*Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.
- Heater Type: PBN Heating Unit for Flag Style Plates
- Boralectric Heater: Pyrolytic boron nitride, pyrolytic graphite
- Maximum Temperature: 1000°C*
- Maximum Power: 120W (40V, 3.0A at ~1000°C)
- Sample Receiver Options:
- Electrically insulated (default)
- Sample grounded to body
- Installed Thermocouple: K-type (chromel/alumel)
- Power Supply: Not included
- Recommended: 150W, Voltage Range: 0-50V, Current Range: 0-5A
- Materials:
- Boralectric Heater: Pyrolytic boron nitride, pyrolytic graphite
- Housing, Sample Plate Receiver, Screws & Washers : Molybdenum
- Isolators: Ceramics (Al₂O₃)
- Mounting Sleeves, Screws & Washers: Stainless Steel (1.4301 & grade A4)
*Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.
- Heater Type: PBN Heating Unit for Flag Style Plates
