PA16
Port Aligner (DN16CF)
From
1’250.00 CHF
Precise angular & linear alignment tool for UHV-systems.
- Compact Precision: Enables highly accurate angular and linear adjustments.
- Robust Construction: Features an edge-welded bellows unit, securely supported by sturdy ball-jointed screws.
- Transfer Alignment: Perfect for aligning instruments or transfer axes between chambers.

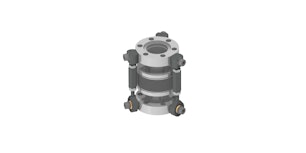

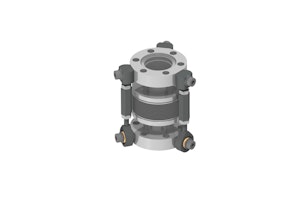

The PA16 port aligner is designed for precise axis adjustment in a wide range of UHV system applications.
Two DN16CF flanges with through holes connect an edge-welded bellows unit.
Three hexnuts provide manual control over both angular and linear adjustments, allowing for precise alignment.- Flanges: DN16CF (1.33" O.D.), through holes
- Length: 51 mm
- Linear Adjustement: +/- 6mm
- Angular Adjustement: +/- 5 deg
- Lateral Axis Displacement: None
- Free Bore: 16mm
- Bakeout Temperature: 200 °C max.
- Pressure Range: 1E-11mbar to 1000mbar
