TMPT1000S
Pt1000 Sensor on Support Piece with 4-Wire Cabling, Uncalibrated
From
530.00 CHF
Easy-to-mount and accurate Platinum 1000 temperature sensor covering a range of -200°C to 200°C.
A Pt1000 Sensor for easy and accurate temperature measurements in UHV from -200°C to 200°C.

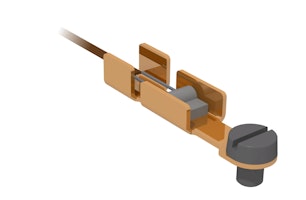

The sensor is glued onto a copper mounting bracket with a thermally conductive, UHV compatible epoxy resin (Epotek H72). Sensors can be mounted either plane-parallel for good thermal contact or in 90° geometry in case of limited space.
It is fully UHV compatible and comes with AWG 32 poly-imide isolated phosphorous bronze four-wire cabling with a standard length of 500mm. Four loose crimp socket connectors for pin diameter 1.5-1.6mm are included.
- Sensor Type: Pt1000 sensor (thin film technology on ceramics/glass substrate)
- Temperature Range: -200°C to 200°C
- Tolerance: IEC 60751 F 0.15
- Mount: Sensor mounted to copper bracket using Epotek H72 (thermally conductive, UHV compatible epoxy).
- Wiring:
- Cable Length: 500mm
- Cable: 32 AWG Quad-LeadTM cryogenic wire, phosphorous bronze, polyimide insulation
- End Connectors: Open ends
- 4 loose crimp sockets for ø1.5 - 1.6mm pins included.
- Materials: All fully UHV compatible
