RD16HT-0035

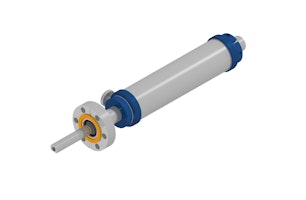

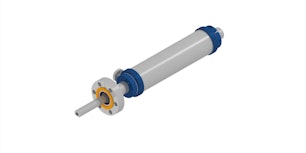

High-Torque Rotary Feedthrough (DN16CF)
From
2’900.00 CHF
High-torque rotary feedthrough for heavy-duty applications.
For ultra-high vacuum (UHV) applications requiring higher torque, the High-Torque Rotary Feedthrough delivers powerful and precise rotational motion.
This compact, magnetically driven feedthrough ensures smooth performance, with optional motorization upgrades available for increased precision requirements.
- Flange Size: DN 16CF (1.33" O.D.)
- Torque: 1 Nm
- Pressure Range: 1E-11 mbar to 1000 mbar
- Bakeout Temperature: Max. 200 °C
