IVWSC2PK___

Package of Spring Probe Contact, OD=0.5mm

From

320.00 CHF

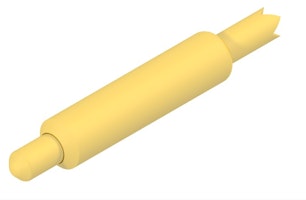

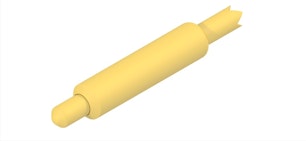

Gold-plated spring probe electrical contacts.

Questions? Connect with an expert

  • These pins are available in packs of 10 or 100.

    Product CodePackage SizePrice
    IVWSC2PK1010 pinsCHF 320.00
    IVWSC2PK100100 pinsCHF 1850.00

  • High precision spring probe contact, used in our SHOMEC sample holders. These contacts allow to build in-situ exchangable assemblies with multiple electrical contacts.

    Connect with Ferrovac Sales for a detailed discussion of your requirements.

    Contact

    • Package Size: Packs of 10pcs or 100pcs. See Product Configuration.
    • Pin Dimensions: L = 3.3mm, OD = 0.5mm
    • Stroke:
      • At working pos: Plunger A = 0.175mm / plunger B = 0.175mm (double side plunger)
      • Full stroke: max. 0.47mm (plunger A = max. 0.235mm / plunger B = max. 0.235mm)

    • Force:
      • Initial: (3.3mm): 0N
      • Working Pos: 0.26N (+/-0.05N)
    • Materials:
      • Plungers: CuBe / Gold over nickel plating
      • Barrel: Bs / Gold over nickel plating
      • Spring: SWP (spring wire) / Gold over nickel plating

    Note: IVWSC2 contacts are slightly ferromagnetic.
