Cryo UHV Suitcase Package

From

106’500.00 CHF

  • Portable Cryogenic Temperature UHV Transfer System: LN2-cooled transport at E-11 mbar.
  • Patented Cryo Shielding: With integrated viewports for sample protection and observation.
  • Multi-Sample Compatibility: Supports various sample formats
  • Integrated NEG/Ion Pump: Battery-powered, combined pumping technology.
Questions? Connect with an expertBuy at UHV store

  • The Cryo UHV Suitcase is available in two wobblestick insertion depths, measured from the gate valve flange. The effective insertion depth may vary depending on the chosen end-effector / sample holder type.

    Product CodeExtended Length of Wobblestick RodCryo Grabber OptionsStorage CapacityPrice
    UHVCTS~380 mmFlag-Style Sample Grabber (GRABSHOMCR), Dove-Tail Grabber (GRABSHDOCR)1CHF 106'500.00
    UHVCTS~380 mmAtom Probe Puck Grabber (GRABSHAPCR)1Contact Ferrovac Sales
    UHVCTSL~580 mmFlag-Style Sample Grabber (GRABSHOMCR), Dove-Tail Grabber (GRABSHDOCR)1CHF 111'000.00
    UHVCTSL~580 mmAtom Probe Puck Grabber (GRABSHAPCR)1Contact Ferrovac Sales

    If you need assistance with this product, a Ferrovac expert is ready to help you find the optimal solution.

    Connect with an expert

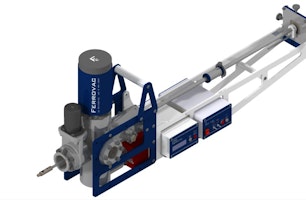

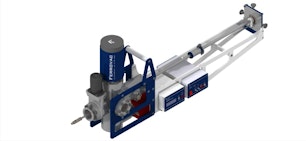

  • The Ultra High Vacuum Cryo Transfer Suitcase (UHVCTS) is a specialized, compact, and robust system designed for the safe and efficient transport of sensitive samples at cryogenic temperatures under Ultra-High Vacuum (UHV) conditions.

    Utilizing a liquid nitrogen dewar, advanced thermal shielding, and precise temperature monitoring, the UHVCTS maintains true UHV (E-11 mbar) and cryogenic conditions during sample transfer. Its patented design, featuring integrated viewports within the cryo shields, ensures sample protection and observation. This suitcase is compatible with various sample formats and offers flexible docking solutions for seamless integration with analytical and preparation instruments.instruments.

    Included Accessories:

    • Bakeout tent for UHV suitcase.
    • Bakeout heater for UHV suitcase.
    • Flight case for NexGeneration UHV Suitcase.

  • System:

    • Model: UHVCTS
    • Type: Ultra High Vacuum Cryo Transfer Suitcase
    • Operating Temperature: Cryogenic (Liquid Nitrogen cooled)
    • Vacuum level: E-11mbar

    Cryogenic System:

    • LN2 Dewar: Integrated for active sample cooling
    • Thermal Shields: Customized Cryo shields for sample protection
    • Cryogenic sample grabber with thermal contact to LN2 cooled inner shields.

    Vacuum System:

    • Pump: NexTorr D200-5 combined NEG-Ion pump
    • Power Supply: LSA3 rechargeable battery-driven power supply

    Control and Monitoring:

    • LSA3 Controller: Pressure and temperature readout
    • LSN1 Controller: NEG activation
    • Integrated viewports in shields for sample observation.

    Sample Handling:

    • Sample Compatibility: Atom Probe pucks, Dove-tail cryo-shuttles, flag-style sample plates
    • Single shaft WM40 wobblestick manipulator with support rails and fine XY alignment.
    • DN40CF gate valve with removeable extra-compact adapter to DN40KF.

    Docking:

    • Compatibility: Loadlocks and UHV Suitcase Docking Stations
    • Adaptability: Customizable docking solutions for various instruments

    Physical Specifications:

    • Extended length from gate valve flange = ~380mm (varies slightly depending on sample system)
    • Includes flight case for transport.

    Additional Features:

    • Delivered under UHV, ready for immediate use
    • Full set of controller cables
