VSN40S(VRV)/VSN40S(VRV)L

UHV Suitcase Package

From

54’500.00 CHF

  • Portable Room-Temperature UHV Transfer System: Lightweight and fully functional.
  • Integrated NEG/Ion Pump: Battery-powered, combined pumping technology.
  • Complete Control & Monitoring: Pressure, temperature, and NEG activation controllers.
  • Customizable Sample Transfer: Adaptable for various sample types
Questions? Connect with an expertBuy at UHV store

  • The UHV-Suitcase is available in two wobblestick insertion depths, measured from the gate valve flange. The effective insertion depth and maximal storage capacity may vary depending on the chosen end-effector / sample holder type.

    Product CodeExtended Length of Wobblestick RodGrabber OptionsStorage Stack CapacityPrice
    VSN40S(VRV)~335mmFlag-Style Sample Grabber (GRABSHOM), Dove-Tail Grabber (GRABSHDO)min. 1 slot / max. 10 slots (dep. on sample holder)CHF 54'500.00
    VSN40S(VRV)~335mmAtom Probe Puck Grabber (GRABSHAP)Contact Ferrovac SalesContact Ferrovac Sales
    VSN40S(VRV)L~535mmFlag-Style Sample Grabber (GRABSHOM), Dove-Tail Grabber (GRABSHDO)min. 1 slot / max. 10 slots (dep. on sample holder)CHF 59'000.00
    VSN40S(VRV)L~535mmAtom Probe Puck Grabber (GRABSHAP)Contact Ferrovac SalesContact Ferrovac Sales

    If you need assistance with this product, a Ferrovac expert is ready to help you find the optimal solution.

    Connect with an expert

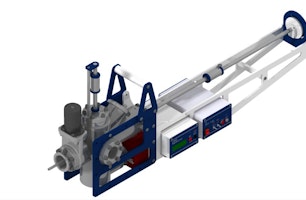

  • The VSN40S(VRV) is a compact, lightweight, and fully-featured UHV suitcase for the transport of sensitive samples at room temperature under true UHV conditions. It utilizes a combined Non-Evaporable Getter (NEG) and Ion-pump to achieve and maintain vacuum, powered by a rechargeable battery. This suitcase is designed for portability and ease of use, featuring dual side-mounted viewports and a rear-view viewport for sample observation, as well as a user-friendly controller providing pressure and temperature readout.

    Included Accessories:

    • Bakeout tent for UHV suitcase.
    • Bakeout heater for UHV suitcase.
    • Flight case for NexGeneration UHV Suitcase.

  • System:

    • Model: VSN40S(VRV)
    • Type: Room-Temperature UHV Transfer Suitcase
    • Portability: Highly portable and lightweight

    Vacuum System:

    • Pump: NexTorr Z200 combined NEG-Ion pump
    • Power Supply: LSA3.1 rechargeable battery-driven power supply

    Control and Monitoring:

    • LSA3 Controller: Pressure and temperature readout
    • LSN1 Controller: Timed NEG activation
    • Rear-view welded viewport: Transfer monitoring

    Sample Handling:

    • Storage Manipulator: Sample Transporter with customizable sample storage stack
    • Sample Compatibility: Flag-style sample plates, Atom Probe pucks, dove-tail cryo-shuttles (customizable)
    • Gate valve: DN40CF gate valve with removeable extra-compact adapter to DN40KF.

    Bakeout:

    • Bakeout Temperature: 150°C max.
    • Includes: Bakeout tent and heater (230V)

    Physical Specifications:

    • Weight: Approximately 12kg
    • Extended length from gate valve flange = ~335mm (varies slightly depending on sample system)
    • Includes flight case for transport.

    Additional Features:

    • Delivered under UHV, ready for immediate use
    • Full set of controller cables
    • Extra short CF40 to KF40 adapter with KF40 buffer volume cap.
