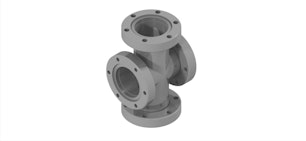

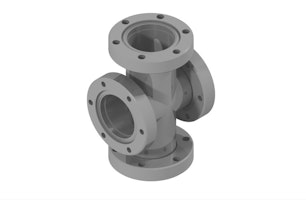

Ultra-Compact DN40CF Cross

• Description

  This ultra-compact DN40CF cross features four rotatable DN40CF flanges.
  The extra short 80mm width makes this piece very useful as a tiny docking chamber for a sample etransfer device, when combined with a mobile pumping station and a gat valve.

• Specifications

  • Flange Configuration: 4x DN40CF (4x rotatable)
  • Inner Tube Diameter: 38 mm
  • Additional Length: Adds 80.0 mm to dimension Y of the main product
  • Material: Stainless steel (1.4301)
  • He Leak Rate: 1 x 10^-9 mbar * l/s

Downloads

Downloads

• VSCROSS40RL80 | Rev B | 2D(pdf)
