Ultra SLIM Pincer

From

2'500.00 CHF

Integrated Omicron LT-AFM Handling: Tailored for Omicron-style flag plates with a specialized mechanism for in-vacuum squeezing and releasing of the LT-SPM tip holder.
Enhanced Ultra-Slim Profile: Features a significantly narrower head and more compact, symmetrically opening jaws compared to the standard PGWMS, ideal for highly confined spaces.
Maximum Visibility: The ultra-slim geometry provides an unobstructed view of both the sample and the tip holder through the chamber viewports.

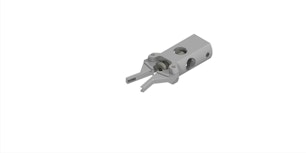

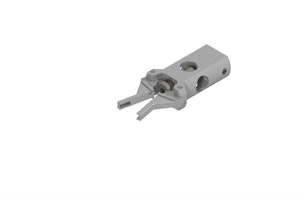

The PGWMS(OMUSLIMLTA) is a highly specialised, ultra-slim pincer engineered for precise sample and tip handling within low-temperature scanning probe microscopy (LT-SPM) setups.
Featuring a dedicated groove, it securely transports Omicron-style flag sample plates. Its key feature is a custom mechanism designed for the in-vacuum exchange of the AFM tip holder on the Omicron LT-SPM carrier: closing the jaws applies a precise squeezing force to release the holder from its seat, whilst opening them ensures a firm, secure fit.
Compared to the standard PGWMS, this model features a significantly narrower head and compact, symmetrically opening jaws. This ultra-slim geometry is optimised for heavily confined spaces and provides an unobstructed view through the chamber viewports during delicate transfers.
- Jaw Opening: ~23° max., -2.3° min.
- Bakeout Temperature: 200 °C max.
- Compatibility: Dual-Shaft Wobblesticks
- Material: Stainless Steel 1.4301, CuBe2
Dimensional Change: Increases retracted length of the main product by 27.0 mm
