ZLCF100CF40WM

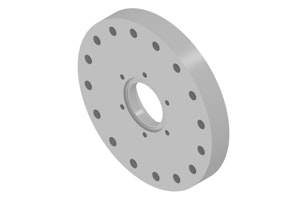

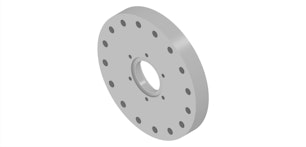

Zero Length Reducing Flange for Wobblesticks (DN100CF to DN40CF)
From
500.00 CHF
Zero-length adapter flange to enable full deflection of mounted wobblesticks.
- Maximized Angular Range: Milled inner edges allow full wobblestick deflection without interference.
- Bellows Protection: Prevents contact with the flange, safeguarding wobblestick integrity.
This Zero Length Reducing Flange is designed to maximize the angular range of wobblesticks while eliminating the risk of bellows damage.
It features a milled inner edge that allows for full deflection of the wobblestick without interference, unlike standard reduction flanges. This ensures smooth operation and better longevity for wobblesticks.
- Material: 1.4301 stainless steel
- Flange Reduction: DN100CF to DN40CF
- Dimensional Change: Decreases the retracted length of the main product by -20.0 mm
- Inner Edge Design: Chamfered (10x45°)
- Bakeout Temperature: Maximum 150°C
- Pressure Range: 1E-11 mbar to 1000 mbar
Wobblestick Compatibility
Single Shaft Wobblestick
WM40-XXXX-YYYY
From3’350.00 CHF
Single Shaft Wobblestick - Wide Angle
WMWA40-XXXX-YYYY
From3’900.00 CHF
Single Shaft Wobblestick - High Torque
WM40HT-XXX-YYYY
From3’980.00 CHF
Dual Shaft Wobblestick
WMG40-XXXX-YYYY
From4’940.00 CHF
Dual Shaft Wobblestick - Wide Angle
WMGWA40-XXXX-YYYY
From6’400.00 CHF
Dual Shaft Wobblestick - Fine Control
WMG40(FC)-XXXX-YYYY
From6’100.00 CHF
