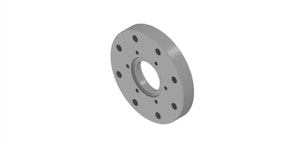

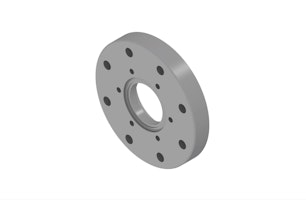

Zero Length Reducing Flange for Wobblesticks (DN63CF to DN40CF)

From

260.00 CHF

Zero-length adapter flange to enable full deflection of mounted wobblesticks.

Questions? Connect with an expertBuy at UHV store

    • Maximized Angular Range: Milled inner edges allow full wobblestick deflection without interference.
    • Bellows Protection: Prevents contact with the flange, safeguarding wobblestick integrity.

    This Zero Length Reducing Flange is designed to maximize the angular range of wobblesticks while eliminating the risk of bellows damage.

    It features a milled inner edge that allows for full deflection of the wobblestick without interference, unlike standard reduction flanges. This ensures smooth operation and better longevity for wobblesticks.

    • Material: 1.4301 stainless steel
    • Flange Reduction: DN63CF to DN40CF
    • Dimensional Change: Decreases the retracted length of the main product by -17.5 mm
    • Inner Edge Design: Milled chamfer (7mm x45°)
    • Bakeout Temperature: Maximum 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar

Wobblestick Compatibility
