Angled Electrical Feedthrough Chamber with Two Straight Ports (DN63 - DN40)

Price on Request

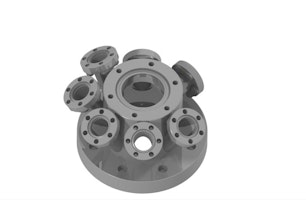

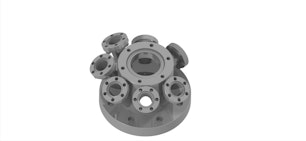

Multiport chamber for electrical feedthroughs with 1xDN63CF, 1xDN40CFT, 2xDN16CF and 5xDN16CF at 30deg.

This compact ultra-high vacuum (UHV) chamber is designed for the installation of feedthroughs on XYZ manipulators.
It features a DN63CF mounting flange with an integrated interface for the manipulator support tube. The chamber includes five DN16CF ports inclined at 30° to the vertical axis, along with two additional DN16CF ports arranged orthogonally.
The base flange incorporates threaded ring segments for securing the support tube of the manipulator. Depending on the specific setup, the chamber's top flange can accommodate either a magnetically coupled rotary feedthrough or, for example, a DN40CF Sub-D electrical feedthrough.
- Base Flange: DN63CF with threaded ring segments for mounting the support tube
- Top Flange: DN40CF, tapped M6
- Feedthrough Ports:
  - 2 × DN16CF at 30° inclination for LN₂ feedthroughs
  - 3 × DN16CF at 30° inclination for electrical feedthroughs
  - 2 × DN16CF at 90° (orthogonal orientation)
- Material: Stainless steel 304L
- Surface Finish: Cleaned to UHV standards
- Leak Rate: Helium leak rate < 1 × 10⁻¹⁰ mbar·L/s
- Bakeout Temperature: Up to 250 °C
- Included Accessories:
  - Set of plate nuts for DN16CF flanges
  - Set of copper gaskets
