Angled Electrical Feedthrough Chamber (DN63 - DN40)

From

2’350.00 CHF

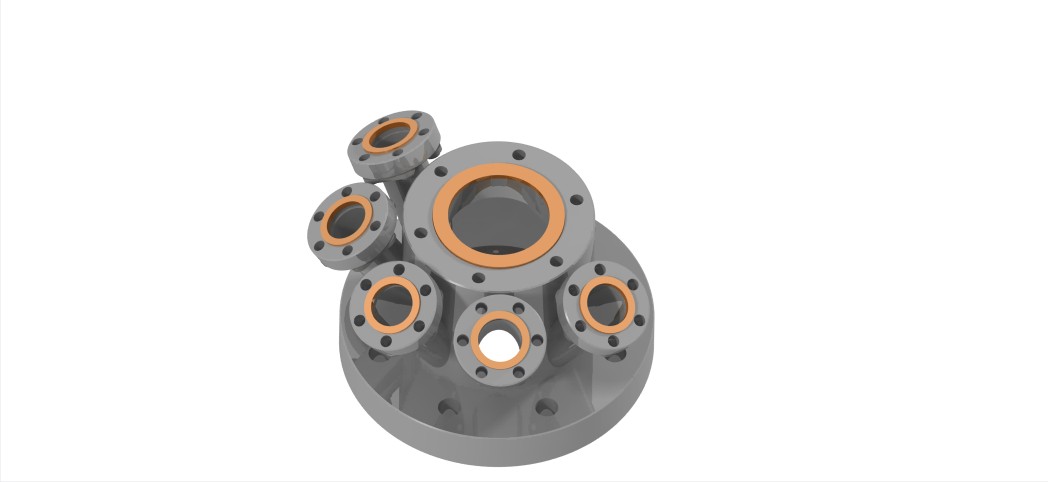

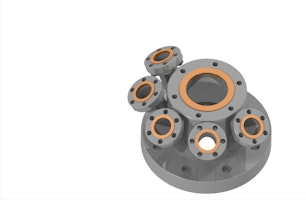

Multiport chamber for electrical feedthroughs with 1xDN63CF, 1xDN40CFT, 5xDN16CF at 30deg.

This compact ultra-high vacuum (UHV) chamber is designed for the installation of feedthroughs on XYZ manipulators.
It features a DN63CF mounting flange with an integrated interface for the manipulator support tube. The chamber includes five DN16CF ports inclined at 30° to the vertical axis.
The base flange incorporates threaded ring segments for securing the support tube of the manipulator. Depending on the specific setup, the chamber's top flange can accommodate either a magnetically coupled rotary feedthrough or, for example, a DN40CF Sub-D electrical feedthrough.
- Base Flange: DN63CF with threaded ring segments for mounting the support tube
- Top Flange: DN40CF, tapped M6
- Feedthrough Ports:
  - 5 × DN16CF at 30° inclination
- Material: Stainless steel 304L
- Surface Finish: Cleaned to UHV standards
- Leak Rate: Helium leak rate < 1 × 10⁻¹⁰ mbar·L/s
- Bakeout Temperature: Up to 250 °C
- Included Accessories:
  - Set of plate nuts for DN16CF flanges
  - Set of copper gaskets
