Boomerax XY Stage DN100 with +-12.5mm Travel

From

9’850.00 CHF

Highly precise heavy-duty two axis manipulator.

Questions? Connect with an expertBuy at UHV store

  • The Boomerax XY Stage DN100 with +-12.5mm travel is available in two different traveling flange options: DN63CF and DN100CF.

    SpecificationMXY100CF100TCF63TXY12MXY100CF100TCF100TXY12
    Travel XY+/- 12.5 mm+/- 12.5 mm
    Bellow ID102 mm102 mm
    Max. Insert OD66 mm66 mm
    Base FlangeDN100CFT (6" OD) M8DN100CFT (6" OD) M8
    Travel FlangeDN63CFT (4.5" OD) M8DN100CFT (6" OD) M8
    Price9850 CHF10250 CHF

  • Boomerax MXY100 – High-Precision Two-Axis Positioning Stage

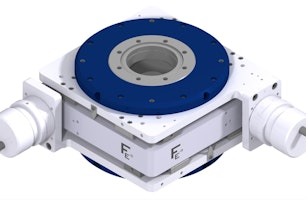

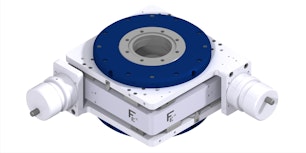

    The Boomerax MXY100 is a versatile, heavy-duty, and highly precise two-axis positioning stage, designed for ultra-high vacuum (UHV) applications. Featuring an edge welded bellows unit with an inner diameter of 102 mm, it ensures vacuum integrity while providing smooth and controlled motion for fine positioning tasks.

    Equipped with large-diameter micrometer heads and a 20-micron scale, the MXY100 enables 2-micron motion resolution when manually driven. For enhanced performance, motorized and encoded versions are available, offering even higher resolution and automated control.

    The modular design of the MXY100 allows seamless integration with Boomerax Z-axis modules and rotary platforms, enabling the construction of a complete XYZR manipulator system.

    • 2° adjustable tilt on both flanges for enhanced alignment
    • Adjustable mechanical end stops for precise motion limits
    • Stable, support-free mounting in any orientation
    • Compatible with stepper motors, limit switches, and encoders

    This Boomerax XY Stage is available for direct order through the UHV Store.

    If you're unsure which model is best for your application or have any questions, connect with Ferrovac sales for expert advice.

    Contact

    • Mounting Flange: DN100CF (6" OD) tapped M8
    • Travelling Flange: DN63CF (4.5" OD) tapped M8 (DN100CF flanges available on request)
    • XY Travel Range: ±12.5 mm
    • Free Bore: 102 mm
    • Max. Insert OD: 66 mm

    • Resolution: 2 microns manually (Higher resolution possible with motorized and encoded versions.)
    • Adjustable Tilt: ±2°
    • Adjustable Mechanical End Stops: Yes
    • Bakeout Temperature: 150 °C max.
    • Pressure Range: 1E-11 to 1000 mbar
    • Helium Leak Rate: <1E-10 mbar*l/s

    • Air-Side Lubrication:
      • Spindle: Motorex Type 3000
      • Screws: CRC Dry Lube F 32602-AA
      • Linear Rails: Krytox GPL 225
