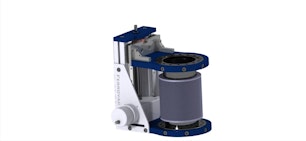

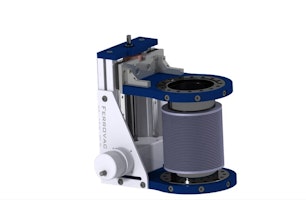

Boomerax Z Stage CF100

Price on Request

Highly precise, heavy-duty linear manipulator.

Questions? Connect with an expert

  • The Boomerax Z Stage CF100 is available in the following configurations:

    Product CodeLinear Travel ZFlange TypePrice (CHF)
    MZ100CF100CF100-0100100mmCF100Contact Ferrovac Sales
    MZ100CF100CF100-0200200mmCF100Contact Ferrovac Sales
    MZ100CF100CF100-0300300mmCF100Contact Ferrovac Sales
    MZ100CF100CF100-0500500mmCF100Contact Ferrovac Sales
    MZ100CF100CF100-0750750mmCF100Contact Ferrovac Sales

    Customization Range with CF100 (Other Flanges Available Upon Request):

    Product CodeLinear Travel ZFlange TypePrice (CHF)
    MZ100CF100CF100-ZZZZMin. 100mm / Max. 750mmCF100Contact Ferrovac Sales

    If you're unsure which model is best for your application or have any questions, connect with Ferrovac sales for expert advice.

    Contact

  • The Boomerax MZ100 Z-drives offer a robust design for precise linear motion. High-quality edge-welded bellows ensure leak tightness and durability, meeting all UHV requirements. Both short and long versions of the MZ100 feature a continuous free bore, thanks to the external mounting of the bellows supports.

    Boomerax Z-drives are often integrated with our Boomerax XY-Manipulators and differentially pumped rotary platforms to create complete XYZR manipulator systems.

    • Precision: A motion resolution of 2 microns enable pinpoint Z-axis accuracy and repeatable positioning.
    • Sturdy: Durable, sturdy design capable of handling heavy loads and long travel ranges, while maintaining a compact form.
    • Integration: Complete motion control solutions by combining the Z-stage with readily available Ferrovac XY-stages and rotary platforms for a complete XYZR system.

    • Mounting Flange: DN100CF with through holes for M6 (other flanges available upon request)
    • Traveling Flange: DN100CF with through holes for M6 (other flanges available upon request)
    • Bellows ID: 100mm

    • Resolution: 2 microns (manual). Higher resolutions achievable with motorized and encoded versions.
    • Transmission: 1:2
    • Helical/Screw gear Unit: 1:1
    • Spindle Pitch: 2mm

    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11 to 1000 mbar
    • Helium Leak Rate: <1E-10 mbar*l/s
    • Air-Side Lubrication
      • Spindle: Motorex Type 3000
      • Screws: CRC Dry Lube F 32602-AA
      • Linear Rails: Krytox GPL 225

    Note: The MZ100 requires support with a stand when mounted horizontally.
