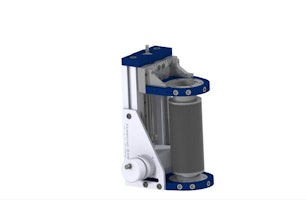

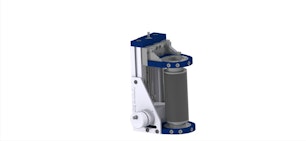

Boomerax Z Stage CF40

From

8’100.00 CHF

Highly precise, heavy-duty linear manipulator.

Questions? Connect with an expertBuy at UHV store

  • The Boomerax Z Stage DN40 is available in the following configurations:

    Product CodeLinear Travel ZFlange TypePrice
    MZ40CF40CF40-0100100mmCF408100 CHF
    MZ40CF40CF40-0200200mmCF408650 CHF
    MZ40CF40CF40-0300300mmCF409600 CHF
    MZ40CF40CF40-0500500mmCF4010400 CHF
    MZ40CF40CF40-0750750mmCF4011800 CHF
    MZ40CF40CF40-10001000mmCF4013300 CHF
    MZ40CF40CF40-12501250mmCF4015900 CHF

    Customization Range with CF40 (Other Flanges Available Upon Request):

    Product CodeLinear Travel ZFlange TypePrice
    MZ40CF40CF40-ZZZZMin. 100mm / Max. 1250mmCF40Contact Ferrovac Sales

    Standard Lengths of this Boomerax Z-Stage are available for direct order through the UHV Store.

    If you're unsure which model is best for your application or have any questions, connect with Ferrovac sales for expert advice.

    Contact

  • The Boomerax MZ40 Z-drives offer a robust yet compact design for precise linear motion. High-quality edge-welded bellows ensure leak tightness and durability, meeting all UHV requirements. Both short and long versions of the MZ40 feature a continuous free bore, thanks to the external mounting of the bellows supports.

    Boomerax Z-drives are often integrated with our Boomerax XY-Manipulators and differentially pumped rotary platforms to create complete XYZR manipulator systems.

    • Precision: A motion resolution of 2 microns enable pinpoint Z-axis accuracy and repeatable positioning.
    • Sturdy: Durable, sturdy design capable of handling heavy loads and long travel ranges, while maintaining a compact form.
    • Integration: Complete motion control solutions by combining the Z-stage with readily available Ferrovac XY-stages and rotary platforms for a complete XYZR system.

    • Mounting Flange: DN40CF with through holes for M6 (other flanges available upon request)
    • Traveling Flange: DN40CF with through holes for M6 (other flanges available upon request)
    • Bellows ID: 38 mm

    • Resolution: 2 microns (manual). Higher resolutions achievable with motorized and encoded versions.
    • Transmission: 1:2
    • Helical/Screw Gear Unit: 1:1
    • Spindle Pitch: 2 mm

    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11 to 1000 mbar
    • Helium Leak Rate: <1E-10 mbar*l/s
    • Air-Side Lubrication
      • Spindle: Motorex Type 3000
      • Screws: CRC Dry Lube F 32602-AA
      • Linear Rails: Krytox GPL 225

    Note: The MZ40 requires airside support with a stand when mounted horizontally.
