Boomerax XY Stage DN40

From

7’950.00 CHF

Highly precise heavy-duty two axis manipulator.

Questions? Connect with an expertBuy at UHV store

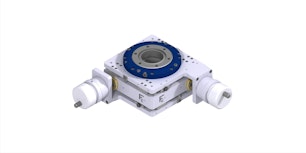

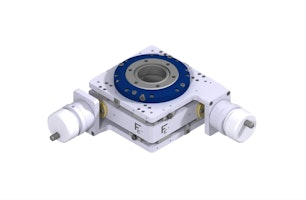

  • Boomerax MXY40 – High-Precision Two-Axis Positioning Stage

    The Boomerax MXY40 is a versatile, heavy-duty, and highly precise two-axis positioning stage, designed for ultra-high vacuum (UHV) applications. Featuring an edge welded bellows unit with an inner diameter ofa 38mm, it ensures vacuum integrity while providing smooth and controlled motion for fine positioning tasks.

    Equipped with large-diameter micrometer heads and a 20-micron scale, the MXY40 enables 2-micron motion resolution when manually driven. For enhanced performance, motorized and encoded versions are available, offering even higher resolution and automated control.

    The modular design of the MXY40 allows seamless integration with Boomerax Z-axis modules and rotary platforms, enabling the construction of a complete XYZR manipulator system.

    • 2° adjustable tilt on both flanges for enhanced alignment
    • Adjustable mechanical end stops for precise motion limits
    • Stable, support-free mounting in any orientation
    • Compatible with stepper motors, limit switches, and encoders

    This Boomerax XY Stage is available for direct order through the UHV Store.

    If you're unsure which model is best for your application or have any questions, connect with Ferrovac sales for expert advice.

    Contact

    • Mounting Flange: DN40CF (2.75" OD) tapped M6
    • Travelling Flange: DN40CF (2.75" OD) tapped M6
    • XY Travel Range: ±10 mm
    • Bellow ID: 38 mm
    • Max. Insert OD: 9 mm

    • Resolution: 2 microns manually (Higher resolution possible with motorized and encoded versions.)
    • Adjustable Tilt: ±2°
    • Adjustable Mechanical End Stops:Yes
    • Bakeout Temperature: 150 °C max.
    • Pressure Range: 1E-11 to 1000 mbar
    • Helium Leak Rate: <1E-10 mbar*l/s

    • Air-Side Lubrication
      • Spindle: Motorex Type 3000
      • Screws: CRC Dry Lube F 32602-AA
      • Linear Rails: Krytox GPL 225
