HSASOM40(DCMD)-XXXX-YYYY-ZZZZ
DC Heating Station for SHOMDC Sample Heating Plates, with Linear Travel & Rotation
10’900.00 CHF
Fully configured, ready-to-use direct current heating stage with motion capabilities.
This heating stage features a fully customizable manipulator, as well as a sample plate receiver with customizable orientation.
Product Code Linear Travel X Retracted Length Y Receiver Orientation Z HSASOM40(DCMD)-XXXX-YYYY-0001 min. 50mm / max. 450mm; standard 100mm min. 112mm / max. 400mm; standard 112 Orientation 01 (flag perpendicular to axis) HSASOM40(DCMD)-XXXX-YYYY-0002 min. 50mm / max. 450mm; standard 100mm min. 112mm / max. 400mm; standard 112 Orientation 02 (flag perpendicular to axis, straight) If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.
Contact- Integrated Sample Transporter: Enables precise sample positioning and manipulation.
- Direct Current (DC) Heating: Enables efficient and precise sample heating up to 1300°C*.
- Integrated Thermocouple: Includes a K-type thermocouple for accurate temperature monitoring.

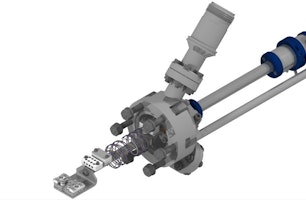

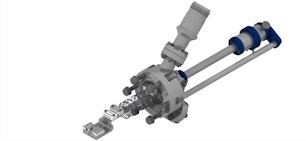

The HSASOM40(DCMD) Heating Station is a versatile UHV solution for direct current (DC) heating of SHOMDC sample holders, enhanced with integrated linear travel and rotation capabilities.
This assembly features a specialized sample receiver with high-current electrical contacts, combined with an MD16 Sample Transporter.
It's pre-mounted on a DN40CF (2.75") flange, including all necessary wiring and feedthroughs, providing a ready-to-use system.
*Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.
- Mounting Flange: DN40CF (2.75")
- Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.
- Mounted DC Sample Plate Receiver: Direct Current Heating Drawer Style Receiver (RECOMDC)
- Receiver Orientation Options: See Product Configuration above.
- Installed Thermocouple: K-type (chromel/alumel)
- Compatible Sample Plates: Not included
- Recommended: Direct Current Heating Sample Plate
- Linear/Rotary Feedthrough: Sample Transporter (MD16) with Support (TSMDH)
- Air-Side Cable:
- Length: 6 meters
- Side A: 4-pin industry-standard MS air-side connector, two K-type thermocouple pairs
- Side B: K-type (chromel/alumel) miniature thermocouple connector, 3x safety 4mm banana plugs (red, black, yellow)
- Power Supply: Not included
- Recommended: 150W, Voltage Range: 0-50V, Current Range: 0-5A
- Controller: Not included
- Packaging: Included
