TSMDH-XXXX

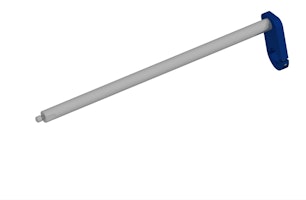

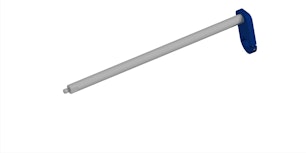

Single-Sided Tube Support for Linear / Rotary Feedthroughs
From
280.00 CHF
Air-side support structure for linear / rotary motion feedthroughs.
Enhance the safety and stability of your MD16(TS) and MD40 motion feedthroughs with our reliable single-sided tube support. Designed with precision, this support features an 8mm diameter shaft that effectively protects the tube unit from accidental bending, ensuring longterm performance and durability.
Additionally, it is compatible with a Rotation Lock/Limitation Adapter for enhanced control and functionality.
- Available Lengths: Min. 50 mm / Max. 850 mm
- Shaft Diameter: 8 mm
- Flange Requirements: The tube support for the MD16 Linear / Rotary Feedthrough requires the ADCF16TS adapter for mounting.
