Electrical Feedthrough Chamber with Parallel Ports (DN63 - DN40)

From

2’900.00 CHF

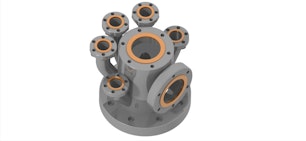

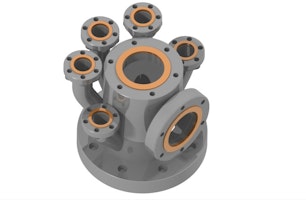

Multiport chamber for feedthroughs with 1xDN63CF, 2xDN40CFT, 5xDN16CF.

This compact ultra-high vacuum (UHV) chamber is specifically designed to accommodate feedthroughs for XYZ manipulators with rotational (R) capability.
It features a DN63CF mounting flange with an integrated interface for the manipulator’s support tube. Five DN16CF ports are aligned parallel to the Z-axis, providing an optimal configuration for setups that include a differentially pumped rotary platform (DPRF) for polar (R1) rotation.
An additional DN40CF port, oriented orthogonally, enables the installation of components such as a DN40CF electrical feedthrough. The base flange includes threaded ring segments to securely mount the manipulator's support tube. The top flange can be configured to support either a helium flow cryostat or an additional DN40CF Sub-D electrical feedthrough, depending on the experimental requirements.
- Base Flange: DN63CF with threaded ring segments for mounting the support tube
- Top Flange: DN40CF, tapped M6
- Feedthrough Ports:
  - 2 × DN16CF, parallel to the Z-axis (suitable for LN₂ or electrical feedthroughs)
  - 3 × DN16CF, parallel to the Z-axis (for electrical feedthroughs)
  - 1 × DN40CF, tapped M6, orthogonally oriented (90° to Z-axis)
- Material: Stainless steel 304L
- Surface Finish: Cleaned to UHV standards
- Leak Rate: Helium leak rate < 1 × 10⁻¹⁰ mbar·L/s
- Bakeout Temperature: Up to 250 °C
- Included Accessories:
  - Set of plate nuts for DN16CF flanges
  - Set of copper gaskets
