DSCF63T5XCF16T

Double-Sided Electrical Feedthrough Flange (DN63)

From

1’950.00 CHF

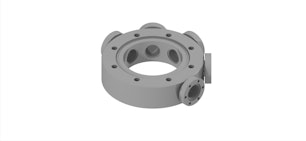

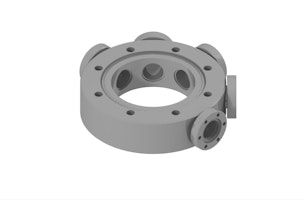

Non-reducing, double-sided and tapped DN63CF flange with straight feedthrough flanges.

Questions? Connect with an expert

  • This DN63CF double flange includes five DN16CF flanges for electrical feedthrough and is specifically designed for integration with Boomerax manipulators, facilitating efficient electrical connections on the travelling flange of the Z-module.

    The double-sided flange features a tapped M8 configuration, making it perfect for applications requiring the most compact design possible.

    • Flange Type: DN63CF Double-sided flange tapped M8
    • Electrical Feedthroughs: 5x DN16CF, tapped M4
    • Flange Thickness: 30mm
    • Material: Stainless Steel 304L
    • Leak Rate: He leak rate < 1E-10 mbar*l/s
    • Bakeout Temperature: 250°C

Boomerax Compatibility
