IVTSMZ63-XXXX

In Vacuum Tube Support for MZ Manipulators CF63

From

650.00 CHF

Durable in-vacuum tube support with minimal contact points to the manipulator arm.

Questions? Connect with an expert

  • The in-vacuum tube support can be customized to fit inserts with diameters up to 45mm:

    Product CodeInner DiameterParameter X in Product CodePrice
    IVTSMZ63-XXXXmin. 5mm, max. 45mm; standard 45mm[Inner Diameter x 10]; standard 0450596.00 CHF

    Questions about the correct size for your application?
    Connect with Ferrovac sales for expert advice.

    Contact

  • This in-vacuum support is designed to support vacuum-side inserts of long Boomerax Z-stages.

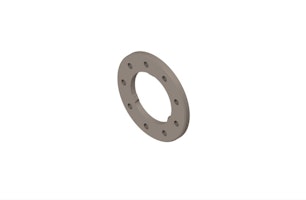

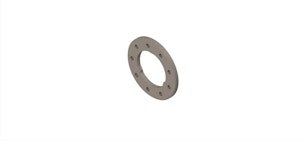

    Similar to an in-vacuum slide bearing, this PEEK ring is mounted within the fixed mounting flange (DN63CF) of the Boomerax manipulator and supports the insert tube while still allowing for effortless linear movement. The design includes holes for faster pump-down and to allow space for in-vacuum wiring.

    • Inner Diameter X: max. ø45mm
    • Flange Size Compatibility: DN63CF
    • Material: PEEK, fully UHV compatible

    Boomerax Compatibility
