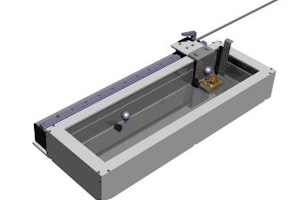

Liquid Nitrogen Basin Dove for Glovebox

• Description

  Designed for working with cryo samples inside a glove box, this Liquid Nitrogen Basin provides a controlled cryogenic environment. With a filling volume of ~1.8 liters, this insulated stainless steel bath tub provides enough space and depth to work with submerged samples.

  The basin includes a linear rail with a sample holder sledge, designed to transfer submerged samples directly into a UHV cryo loading station. The rail includes end stops for accurate positioning during cryo-loading.

  Designed for Dove Tail- and Atom Probe Sample Holders, this liquid nitrogen basin ensures precise cooling and secure sample handling in cryogenic environments.

• Specifications

  • Material: Stainless steel basin mounted to PMMA insulation box
  • Insulation: Layered superinsulation foil
  • Lids: 2x PMMA lids

  • Filling Volume: ~1.5 liters
  • Dimensions (BxHxT): 530 x 162 x 65 mm

  • Sample Transfer: Integrated linear rail for Cryo Loading Station
  • Positioning: End stops for precise cryo-loading alignment
