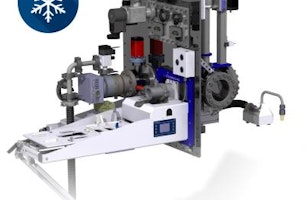

Glove Box Extension Kit with FerroLoader Docking Station and Cryo-Loading Station

• Description

  • Uninterrupted Cryogenic Conditions: Maintain a continuous cold chain from freezing to UHV transfer, minimizing the risk of sample damage.
  • Minimize Contamination Risk: Maintain an unbroken chain of inert gas and UHV environments, preventing sample degradation.
  • Streamline Your Workflow: Perform all preparation and transfer steps within a single, glovebox-integrated system.

  This glovebox extention kit is mounted directly to an existing glovebox side wall.
  It enables a complete cryogenic transfer, designed to maintain complete control over air-sensitive samples, from inert gas preparation to ultra-high vacuum (UHV).

  Key Workflow Steps:

  • Inert Gas Preparation: Begin your process within the controlled environment of your glove box, ensuring your samples remain protected from oxygen and moisture contamination.
  • LN2 Freezing: Utilize the integrated cryo-loading station to rapidly freeze your samples with liquid nitrogen (LN2).
  • Sample Mounting: Mount your frozen samples onto carriers directly in the LN2 bath within the glovebox.
  • UHV Transfer: Dock a UHV cryo-transfer suitcase (UHVCTS) to the FerroLoader docking station. Crucially, your samples are parked on a cold stage within a vacuum chamber reaching 1E-7 to 1E-9 mbar while the suitcase is prepared. This ensures your cryogenically frozen samples remain protected during the transfer process.

• Specifications

  Glove Box Integration

  • ADIEKGBSP(L) - Customized stainless steel side panel interface for inert gas glove boxes.
    • Includes vacuum and electrical feedthroughs, gaskets, and fasteners.
  • TSIAKGB-XXXX - Support shafts for mechanical stability.
    • Clamps attach to the glove box frame (length must be specified).

  Sample Loading and Transfer

  • FLCSGB100 - UHV Cryo Loading Station for Gloveboxes.
    • Fast loading chamber with O-ring sealed quick access door (material: DIN 1.4301).
    • LN2 Dewar DN40CF with level sensor (LNFS-0100-0160), filling line, and solenoid valve (controlled by LSC1).
    • Cryo coupling assembly for sample receiver (RECCLS).
    • PT100 temperature sensor and electrical feedthrough.
    • Universal sample receiver for Cryo Loading Stations.
    • RM40-0200-0010-DRVRMOTL(LV) - Motorized Sample Transporter DN40CF (vertical lift) with control unit and key panels for internal/external glove box operation.
    • 2x Viewport DN100CF, Kodial.
    • 1x DN100CF O-ring sealed quick access door with detection switch.
    • Blank flanges, gaskets, and bolt sets.

  UHV Suitcase Docking

  • IAKGBSYLA - FerroLoader Docking Station for UHVCTS.
    • Quick Connect Docking Port DN40KF for UHVCTS.
    • UHV Suitcase Support Sledge.
    • Cable Kit.

  Vacuum and Control System

  • PUS190 - Dry Scroll Vacuum Pump.
    • Edwards nXDS10i 190l/min or Pfeiffer HiScroll12 202l/min (based on availability).
  • LSC1 - Programmable Control Unit for Vacuum Systems.
    • Software for full system control (vacuum levels, temperature display, valve control, venting/pumpdown control, automatic LN2 Dewar filling).
    • USB interface.
  • PMCOMPKR361DN40CF - Active line full range vacuum gauge (1E-9 to 1000 mbar).
  • PMCGA3M - Cable for Pfeiffer active line transmitters (3m length).
  • PUTKAGIL74FSCF63 - Agilent Turbopump TwisTorr 74FS DN63CF package with accessories.
  • FLCSVVVCOMPO - Roughing line components and solenoid valves for the loading station.

  Cryogenic Transfer

  • CRLNTLFT - Liquid Nitrogen Transfer Lines, Feedthroughs, and Control Valves Package.
    • Pressurized transfer line from a standard LN2 dewar to the glove box.
    • LN2 feedthroughs.
    • Solenoid LN2 valves.
    • Exhaust pipes.

  Adapters and Accessories

  • AFGBSYLAKF40CF40 - Adapter flange for Glove Box Side Panel KF40 to CF40R.
  • TEGBCF63RTCF40RTCF63RTL140 - T-Piece for Glove Box Extension Kit with 2x DN63CF and one DN40CF side port.
  • VAGBPRKF40P05PNSOL - Electrical pressure relief valve for glove box (KF40, 5...20mbar).
  • FRMCARTGBSYT - Height-adjustable trolley for glove box side panel mounting.
  • PCGPNGB - Transport box for glove box adaptation packages.

  Requirements for Installation/Operation

  • Exhaust gas line for excess N2 and pump exhaust.
  • Mains supply voltage: 100-230 VAC 50-60Hz.
  • Compressed air: 4.5-7 bar (ISO 8573-1:2010 [7:4:4]).
  • N2: max 0.5 bar.
  • Toolset for metric fasteners.
  • Liquid Nitrogen: max. 1.5 bar, connecting to 3/4" UNF nipple.
