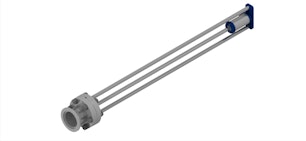

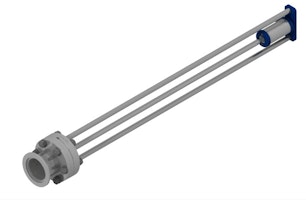

Transfer Manipulator DN40 ISO-KF for Dove Tail Sample Holders

• Product Configurations

  For applications where greater stability is required, or heavier loads are carried, a high-torque option (1 Nm) is available on request.

• Description

  This transfer manipulator can be mounted to the same docking flange as Ferrovac UHV Suticases.
  It forms a basic transfer option to move the sample from the loading chamber to the instrument, for example when utilizing a Ferrovac Inert Gas Transfer Module (IGTS).
  It can also be used to load a sample directly from air, by mounting it to the grabber.

  • Quick Connection: The manipulator attaches to your system using a DN40 ISO-KF clamped flange.
  • Secure Dovetail Handling: It features a specialized gripper designed specifically for Dove Tail Sample Holders (SHDO), ensuring a safe and reliable hold during transfer.
  • Versatile: You can use different tools with the manipulator to handle other types of sample holders.

• Specifications

  • Mounting Flange: DN40KF
  • Max Bakeout Temperature: 200°C
  • Manipulator Type: Sample Transporter (MD40) with air-side tube support (TSMD)
    • Linear Travel: 400mm
    • Retracted Length: -3mm (Distance from mounting flange to front of grabber tool)
  • Grabber Type: Dove-Tail Grabber (GRABSHDO)
  • Included Accessories:
    • O-ring seal with centering ring
    • KF clamp
