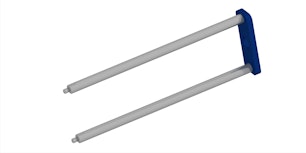

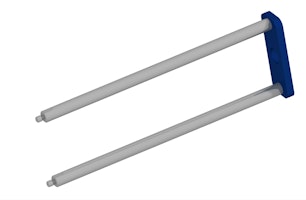

TSMD-XXXX
Tube Support for Linear / Rotary Feedthroughs
From
340.00 CHF
Air-side support structure for linear / rotary motion feedthroughs.
The TSMD-XXXX Tube Support is designed for reliable and secure mounting with MD40 and MD16 (with adapter) configurations. Featuring two parallel 8mm diameter shafts that effectively protect the tube unit from accidental bending, ensuring longterm performance and durability.
Additionally, it is compatible with a Rotation Lock/Limitation Adapter for enhanced control and functionality.
- Available Lengths: Min. 0 mm / Max. 1000 mm (Standard: 0 mm)
- Shaft Diameter: 8 mm
- Flange Requirements: DN16CF flanges require the ADCF16TS adapter for mounting.
