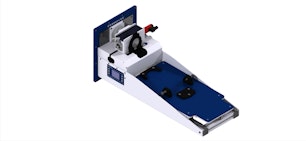

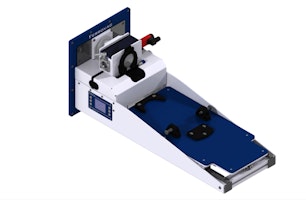

FerroLoader Docking Kit for Thermo Fisher Helios DualBeam™ FIB-SEM

From

40’227.30 CHF

Fast-loading docking kit for Ferrovac UHV-suitcases and other transfer modules.

Questions? Connect with an expert

  • Upgrade your Thermo Fisher Helios DualBeam™ FIB-SEM with the FerroLoader Docking Kit, a versatile docking solution that expands your sample introduction capabilities.

    Enjoy flexible sample loading:

    • Cryogenic and room temperature UHV suitcase loading: Dock a Ferrovac UHV Suitcase (VSN40S) or a Ferrovac Ultra-High Vacuum Cryo Transfer System (UHVCTS) to transfer air-sensitive samples under ultra-high vacuum and cryogenic conditions.
    • Inert gas transfer: Connect a Ferrovac Inert Gas Transfer Shuttle (IGTSFL) to move samples from a glovebox to your FIB-SEM while maintaining a controlled environment.
    • Standard loading: It is still possible to use a standard transfer arm to introduce samples, maintaining the same workflow as the original QuickLoader™.

    Main Features:

    • Flexibe connection point: Loading with a number of Ferrovac UHV suitcases and transfer modules possible, without removing the option to load with the standard transfer arm.
    • Adjustable support: Features a height-adjustable linear sledge for precise connection flange positioning.
    • Integrated controls: Includes a valve controller and interface for managing vacuum and gas flow.
    • Large transfer flange: Offers a 38mm free inner diameter for accommodating various sample sizes.

    Connect with us for more information.
    Our experts will gladly support you to find the right solution for your workflow and situation.

    Connect with an expert

  • Core Components

    • Adaptation Package: Thermo Fisher "L-Port" to DN40-ISO-KF adapter and a sturdy mechanical support attachment to the Helios DualBeam FIB-SEM.
    • Fast Loading Chamber: Dual-purpose chamber for standard transfer arm loading and UHV suitcase docking.
    • UHV Suitcase and UHVCTS Support: Frame and sledge for secure Suitcase and UHVCTS docking.

    • Vacuum Components:
      • Mini Gate Valve: Series 012 DN40KF, pneumatic actuator, position indicator, double-acting solenoid valve.
      • Angle Valve: DN16KF, pneumatic, position indicator, solenoid valve, closing spring.
      • Venting Valve: Solenoid 24V DC, G1/8" normally closed.
      • Pirani Gauge: TPR 280 Active Line, DN16 ISO KF.
      • Gaskets: 3x GAKF40CI - FPM, DN40KF, centered internally.
      • Roughing Line Components: IAKDDVVCOMPO, for Helios direct docking adaptation.
    • Control System:
      • Programmable Control Unit (LSC1): with FerroLoader Hub extension for Thermo Fisher HELIOS FIB/SEM, with connection ports for:
        • Power input
        • Thermo Fisher FIB/SEM cryo-interlock
        • PT100 temperature sensor input
        • Pfeiffer gauge interface (for TPR280)
        • 3x serial USB
        • Edwards/Pfeiffer scroll pump (On/Off)
    • Cable Kit: For FerroLoader and UHVCTS connections.

    Optional Components

    • Transfer Arm: For direct sample loading (like the original QuickLoader™).
    • Transfer Arm End Effector: Adapters for specific sample holders.
    • Vacuum Pump: Edwards Dry Scroll Vacuum Pump, 103 l/min (6.2 m3/h) or larger.
    • Inert Gas Transfer Shuttle: IGTSFL, for inert gas transfers.

    Required Accessories (Not Included)

    • Cryo Interlock Kit: Thermo Fisher 1099932, for safe cryogenic operation.
    • Compressed Air Line: 4.5-7 bar, with 4mm push-to-connect tubing, conforming to ISO 8573-1:2010 [7:4:4].
    • Nitrogen Gas Line: 0.5-1 bar, with 6mm push-to-connect tubing.
    • Electrical Supply Cable: IEC 320 C8 to your country's IEC socket.

    Suitcase Compatibility

    Transfer Module & Manipulator Compatibility

    FerroLoader Overview
